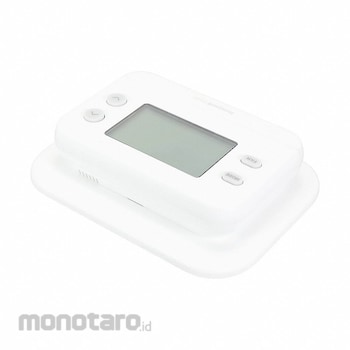

RESIDEO Thermostat
#Grup produk P112411905
Spesifikasi
| Application | Heat and Cool |
|---|---|
| Battery Type | AA Alkaline Battery |
| Changeover Type | Automatic and Manual |
| Compatible System Type | 24V AC Systems; Electric Hot Water Systems; Gas Hot Water Systems; Oil Hot Water Systems; Single Stage Heat and Cool Systems; Single Stage Heat Pumps without Auxiliary Heat; Steam/Radiant Hot Water Systems |
| Control Type | Softkey |
| Differential Type | Fixed |
| Digit Size | Standard |
| Display Type | Digital |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto-On-Circulate |
| Filter Change Reminder | Yes |
| Frequency (Hz) | 60 |
| Housing Color | White |
| Humidification Control | Yes |
| Includes | AA Batteries; Decorative Cover Plate with J-Box Adaptor; Mounting Hardware; Thermostat; UWP Wallplate |
| Maximum Control Temperature (°F) | 99 |
| Maximum Operating Humidity (%) | 90 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Control Temperature (°F) | 32 |
| Minimum Operating Humidity (%) | 5 |
| Minimum Operating Temperature (°F) | 32 |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Mounting Type | UWP Wallplate |
| Number of Cooling Stages - Conventional System | 1 |
| Number of Cooling Stages - Heat Pump System | 1 |
| Number of Heating Stages - Conventional System | 1 |
| Number of Heating Stages - Heat Pump System | 1 |
| Overall Depth (inch) | 1-3/16 |
| Overall Height (inch) | 3-7/16 |
| Overall Width (inch) | 5-1/8 |
| Programming Capability | Not Programmable |
| Shape | Rectangle |
| Stages | 1 H / 1 C Conventional |
| Stages Heat Pump | 1 H / 1 C Heat Pump |
| Stages Heating/Cooling | 1 H / 1 C Conventional ; 1 H / 1 C Heat Pump |
| System Settings | Auto-Heat-Cool-Off |
| Temperature Differential (°F) | +/-1 |
| Temperature Limiting | Yes |
| Temperature Scale | Fahrenheit/Celsius |
| Temperature Sensitivity (°F) | 1 |
| Terminal Designations | C; G; K; L; O/B; R; RC; W; Y |
| Thermostat Type | Low Voltage |
| UNSPSC | 31160000 |
| Voltage (V) | 24 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These thermostats have a digital display for a more modern appearance than analog thermostats. They're often used for temperature control in residential and commercial applications. They're nonprogrammable, so the temperature setting stays the same until it's readjusted.
