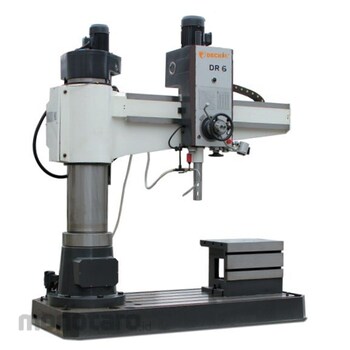

DECKEL DR6 Radial Drilling
#Grup produk P112266624
Spesifikasi
| Column Diameter (mm) | 350 |
|---|---|
| Continuous Drilling Capacity (mm) | 46 (Steel (S235JR)) |
| Dimensions (LxWxH) (mm) | 2600x1120x2600 |
| Distance Spindle to Table (mm) | Max. 1250 |
| Distance Spindle-column (mm) | Max. 1600 |
| Drilling Capacity in Steel (mm) | 50 (S235JR) |
| Lifting Motor (kW) | 1.1 |
| Number of Steps | 16 |
| Power Motor (kW) | 4 |
| Spindle Seat | MK 5 |
| Spindle Sleeve Feed (mm/rev) | 16 steps/0.04 - 3.2 |
| Spindle Speed (rpm) | 25-2000 |
| Tapping Capacity | M36 |
| Throat (mm) | 315 |
| Travel Drilling Head (Horizontal) (mm) | 1250 |
| Travel of Arm (Vertical) (mm) | 600 |
| Working Surface Table (LxW) (mm) | 1700x980 |
| Working Table Cube Table (mm) | 630x500x500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Precision and solid radial drilling machine, high quality, suitable for mass production.
Feature
- Heavy, solid, high quality castings- Wide range of applications drilling, reaming, threading
- Working range by horizontally adjustable machine head
- Clearly arranged control panel
- Solid, precise drilling table, dimensioned
- Durable, rigid construction of the arm
- Height adjustment of the arm is powerful spindle motor drive
- Oil bath gearbox of the arm
- Hardened gears made of chrome-nickel steel and precision-ground, in quietand smooth runningpowerful coolant equipment in the machine base withcoolant tank
- Spindle with precision tapered roller bearings with automatic spindle brake
- Arm guideways hardened and precision ground
- Motorized adjustment of spindle head
- Thick-walled steel column for and stability
- Gear parts are supplied by central lubrication with grease
- Hardened and ground guideways
- Spindle sleeve feed with an adjustable overload clutch
- Column is clamped hydraulically(DR6)
