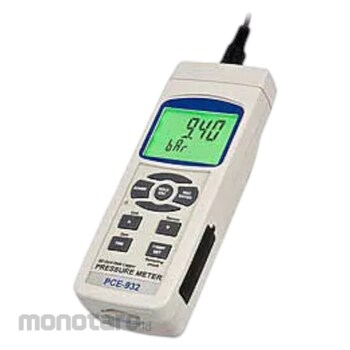

PCE-932 is an easy-to-use, digital, handheld device for high pressure measurement in hydraulic and compressor systems, pumps, tanks and silos in chemical, manufacturing, plastics and HVAC industries. This portable pressure measuring device can be connected to pressure sensors with ranges up to 400 bar (each with a 1.2 m / 3.9 ft connecting cable).
Delivery Scope:
1 x Manometer PCE-932
1 x SD card (2 GB)
1 x User manual
PCE Instruments Portable Datalogging Pressure Meter
#Grup produk P112249982
Spesifikasi
| Auto Shut Off | Yes (this function can be disabled); To conserve battery power (can be disabled) |
|---|---|
| Dimensions (mm) | Approx. 177x68x45 |
| Enclosure | ABS plastic |
| Function | Measurement of pressure, min, max and hold |
| LCD Display (inch) | Approx. 2.05x1.50 |
| Measurement Range (bar) | 0-400 (depending on the sensor) |
| Measurement Rate (s) | Approx. every 0.8 |
| Memory (GB) | SD card ; up to 16 |
| Operating Humidity | 0-80% rh |
| Operating Temperature (°C) | 0 to 50 |
| Power Supply | 6 x 1.5V AA batteries; AC power cable |
| Pressure Connection | Optional, 5V DC, maximum output of sensor is 100 mV DC |
| Selectable Unit | bar, psi, kg/cm2, mm/Hg, inch/Hg, meter/H2O, inch/H2O, ; atmosphere |
| Zero Reset | By way of keypad |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Pressure sensors are sold separately. See also for recommendations. Measurement values are stored in a Microsoft Excel-compatible format to the included SD card memory. Sensors sold separatelyUlasan Produk
