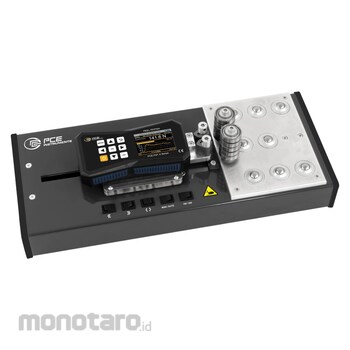

Tension Dynamometer / Tension Load Cell to measure the adhesive force on carrier materials / mobile, robust design / up to 500 N / high accuracy / internal memory
The Tension Dynamometer / Tension Load Cell is a compact hand-held meter with an integrated load cell for the precise measurement of forces within a range from 0 to 500 N. The Tension Dynamometer / Tension Load Cell has been specially developed for peel tests and enables a comprehensive assessment of the processing quality. Our Tension Dynamometer / Tension Load Cell offers a manual and automatic measuring mode, as well as ball rollers on the guide surface to reduce the coefficient of friction.
It has an adjustable sampling rate from 2 to 100 Hz and supports both metric and imperial units of measurement. The measurement duration consists of the pre-run time, measuring time and post-run time, which can be individually configured from 0 to 10 seconds. The integrated data logger saves measurement series as well as individual measurements and displays statistical values such as average, minimum and maximum values as well as graphical curves. With a maximum traverse distance of 150 mm and two traverse speeds (100 mm/min and 300 mm/min), the Tension Dynamometer / Tension Load Cell is highly adaptable to different test requirements.
It is used for testing composite materials such as coated wood-based materials, laminated surfaces or veneered panels as well as for measuring the adhesive strength in bonded joints of various components.
Delivery Scope:
1 x test stand for peel tests PCE-PST 1 X-STAND
1 x handheld Tension Dynamometer / Tension Load Cell PCE-PST 500 X
1 x USB-C cable
1 x desktop power pack 24 V / 5 A
1 x carrying case
1 x quick start guide
PCE Instruments Adhesion Tester for Peel Test
#Grup produk P112245144
Spesifikasi
| Adjustable Measuring Rate (Hz) | 2-100 |
|---|---|
| Automatic Power Off (minute) | 1-15 |
| Automatic Power Off can be Deactivated | Yes |
| Capacity (mAH) | 2200 |
| Connector Type | Schuko plug |
| Dimensions (LxWxH) (mm) | 480x240x135 |
| Display Size (inch) | 2.8 |
| Display Type | LCD |
| Frequency (Hz) | 50/60 |
| Interface | USB-C |
| Maximum Traverse Distance (mm) | 150 |
| Measurable Board Thickness (mm) | 10-64 |
| Measurable Edge Thickness (mm) | 0.4-3.5 |
| Measurement Units | N, Ncm, Nmm |
| Menu Languages | German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, English (GB) |
| Operating Conditions (°C) | -20 to 65 (10 to 95% RH) |
| Operating Time (hour) | 13 |
| Power Supply (V) | Test stand: 110 - 240 AC; Meter: USB 5 , 500 mA |
| Protection Class Device | IP52 |
| Rechargeable Battery | 1 x 7.4 V DST604665; Lithium polymer battery |
| Storage Capacity (GB) | 32 |
| Storage Conditions (°C) | -20 to 65, 10 to 95 % RH |
| Storage Interval From (Hz) | 2 |
| Storage Interval to (Hz) | 100 |
| Storage medium | Internal Memory |
| Traverse Speed (mm/minute) | 100-300 |
