RS PRO
RS PRO Digital Ammeter- 1 PhaseRS Pro digital ammeters designed for use in industrial applications which require precise and onsite adjustment of the display range. The single phase ammeters can be used in industrial automation and for laboratory uses.

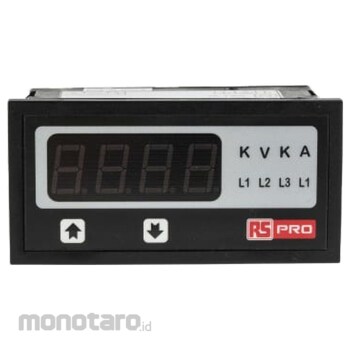

RS PRO Digital Ammeter
#Grup produk P112205906
Spesifikasi
| Approvals | IEC 60529, IEC 61010-1-2001, IEC 61326-1:2005 |
|---|---|
| Current Type | AC |
| Cutout Height (mm) | 43.5 |
| Cutout Width (mm) | 92 |
| Depth (mm) | 68 |
| Maximum Temperature (°C) | 50 |
| Measurement Range (A) | 1 - 5 (Input) |
| Meter Accuracy (%) | ±0.5 + 1 Digit |
| Minimum Temperature (°C) | 0 |
| Series | BT144 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Benefits4-digits ultra-bright LED display (up to 9999)
Fast and easy installation (clip-in mounting for 96 x 96 model only)
True RMS measurement
On-site programmable CT/PT ratios
User selectable CT secondary 1A/5A
User selectable PT secondary from 60…600 V LC AC
Wide auxiliary power supply which can accept any input between 40 V-300 V ac/dc
Storage of MIN/MAX values
