Sanwa Calibrator
#Grup produk P111940297
Spesifikasi
| Adjust Digit | 4 1/2 digit (50mV) (except for 1000V, 2000mA,OHM2) |
|---|---|
| Current Range (DC AC) (mA) | 0 to 2000 |
| Frequency (Hz) | 50, 60 |
| Frequency Range (Hz-kHz) | 40 to 999 (5 ranges) |
| Maximum Display | 50099 |
| Operating Humidity (%RH) | 70 |
| Operating Temperature (°C) | 23 ±3 below |
| Output Adjustment | LOCAL (surface panel) |
| Power Consumption (VA) | 30 |
| Power Supply (V) | AC 100 ±10% |
| Pre-heating Time (minute) | 30-60 |
| Protection | DC and 50 V or higher AC ranges = Overload protection device with reset switch. DC and 5 V or lower AC ranges = Overload protection circuitry |
| Resistance 1 Range (kΩ) | 0 to 500 (10Ω steps) |
| Resistance 2 Range | 24 steps fixed resistance value (4 kinds 6 ranges) |
| Size (mm) | 180x480x580 |
| Voltage Range (DC AC) (V) | 0 to 1000 (6 ranges) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

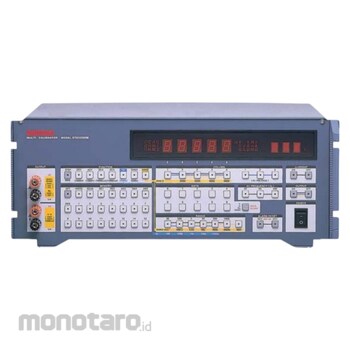

The STD5000M is a calibrator with soft touch buttons that can generate a desired DC voltage / current, AC voltage / current, resistance, frequency, etc. with a high degree of accuracy and stability. The STD5000M is with a memory function allowing a broad range of uses for the device.
Feature
- High accuracy 0.03% (DCV DC mA)Reliable accuracy is achieved by using the standard voltage IC with a constant-temperature bath for the reference voltage and wire wound resistor and metal film resistor with high tolerance and low temperature coefficient for the resistance element.
- Calibrates 6 types of functions
With the calibration elements of 6 functions(DCV, ACV, DCA, ACA, OHM, Hz) incorporated, it can be used for calibrating and maintaining the DMM, DPM (digital power meter), circuit tester and industrial instruments.
- Installs 90 (6x15) output memories
With 90 (6x15) output memories installed, it is possible to save desired setting.
- User-friendly speedy operability
Use of soft-touch push button switches for operation on the panel(except the power switch). Use of semiconductor switches with greater heat resistance and durability for change switches of the circuit, and latch-type relays requiring less electro motive force.
- With overload protection device
To enhance security, overload protection in case of low voltage and current generation is performed on the semiconductor circuit, and overload protection in case of medium and high voltage generation(50V or more) is achieved by releasing the output terminal and circuit.
