Gauge pressure

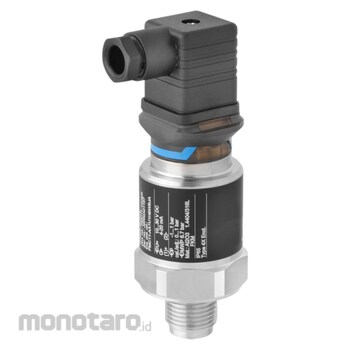

Cerabar PMC11
PMC11-AA1U1PCWBJA
Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids
Endress Hauser PMC11 Series Pressure Sensor
#Grup produk P111928310
Sebelum PPN:
Rp11.999.900 - Rp12.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy (%) | 0.5 |
|---|---|
| Ambient Temperature (°C) | -40 to 70 |
| Ambient Temperature (°F) | -40 to 158 |
| Characteristic | Cost effective pressure transducer, capacitive sensor with ceramics measuring diaphragm |
| Characteristic/Application | Cost effective pressure transducer, capacitive sensor with ceramics measuring diaphragm |
| Communication | 4...20 mA 0...10 V |
| Design Approval | EN10204-3.1 Final inspection report Cleaned from oil and grease |
| Long Term Stability | 0.2 % of URL/year |
| Maximum Overpressure Limit (bar) | 60 |
| Maximum Overpressure Limit (psi) | 900 |
| Measuring Cell (bar) | +0.4 to +40 |
| Measuring Cell (psi) | +6 to +600 |
| Measuring Principle | Gauge pressure |
| Measuring/Application Task | Pressure, Continuous / Liquids |
| Process Connection | Threads: G1/4, G1/2, MNPT 1/4, MNPT 1/2, DIN13 |
| Process Temperature (°C) | -25 to +85 |
| Process Temperature Range (°F) | -13 to +185 |
| Reference Accuracy | 0.5 |
| Supply Voltage (V) | Analogue output: 10…30 VDC 0...10 V output: 12…30 VDC |
| Supply/Communication (V) | Analogue output: 10 to 30 DC 0 to 10 V output: 12 to 30 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring rangesReference accuracy of 0.5% together with high long- term stability and repeatability ensures a high quality of process monitoring in standard processes
Capacitive oil-free measuring cell with high abrasion resistance and 100% test coverage during production guarantees long process availability
Use
Field of applicationThe Cerabar PMC11 is the most price-attractive compact pressure transmitter in its segment. It features a capacitive, oil-free ceramic sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMC11 is designed for standard applications in the process industry and to withstand the conditions with the use of high quality materials like 316L and 99,9% Al2O3.
Pressure transducer with oil-free ceramic sensor to measure gauge pressure in gases or liquids.
Process connections: Threads
Process temperature: -25 to +85°C (-13 to +185°F)
Process pressure: 400mbar to +40bar (6 to 600psi)
Accuracy: ±0.5% of span
