Absolute and
gauge pressure
Ceraphant PTP31B
PTP31B-AA7M1HGBWWJ
Cost-effective pressure switch with welded metal sensor for measurement in gases, steams or liquids

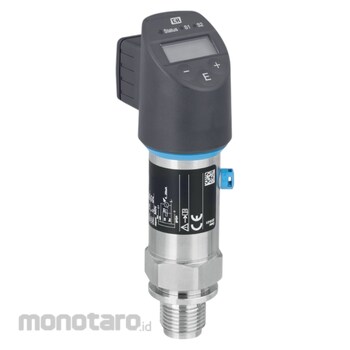

Endress Hauser Ceraphant PTP31B Series Pressure Switch
#Grup produk P111927117
Sebelum PPN:
Rp15.999.900 - Rp19.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -20 to +70 |
|---|---|
| Ambient Temperature (°F) | -4 to +158 |
| Characteristic | Intelligent pressure switch with piezoresistive sensor, longterm stable and overload resistant |
| Communication | 1x PNP switch 2x PNP switch 1x PNP switch + 4...20mA analogue AC/DC, DC-PNP IO-Link |
| Design Approval | EN 10204-3.1 Final inspection report Cleaned from oil and grease Set min alarm |
| Long Term Stability | 0.2 % of URL/year |
| Maximum Overpressure Limit (bar) | 600 |
| Maximum Overpressure Limit (psi) | 9000 |
| Measuring Cell (bar) | +0.4 to +400 |
| Measuring Cell (psi) | +6 to +6000 |
| Measuring Principle | Pressure switch |
| Measuring/Application Task | Pressure |
| Process Connection | Threads: G1/4, G1/2, MNPT1/4, MNPT1/2, DIN13, JIS R1/2 |
| Process Temperature (°C) | -40 to +100 |
| Process Temperature Range (°F) | -40 to +212 |
| Reference Accuracy | 0.5, Platinum: 0.3 |
| Specialities | Digital display |
| Supply Voltage (V DC) | 10 to 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Integrated switching electronics for decentral and economic process monitoring and controlFunction check and information on-site thanks to LEDs and digital display
Overload-resistant sensor up to 400bar
Small flush mounted process connections
IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.
Use
Field of applicationThe Ceraphant PTP31B is a price-attractive pressure switch with piezoresistive sensor for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant for up to +400 bar. The IO-Link capability allows easy integration and parametrization of the device.
Pressure switch with metallic sensor diaphragm for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.
Process connections: Threads
Process temperature: -40 up to +100°C (-40 to +212°F)
Process pressure: 400mbar to +400bar (6 to +6,000psi)
Accuracy: up to ±0.3%
