Absolute and
gauge pressure

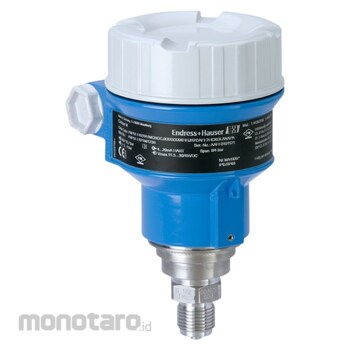

Cerabar PMP51
PMP51-AA21JA1PGBRKJA1
Digital pressure transmitter with welded metal sensor for measurement in gases, steam or liquids
Endress Hauser Cerabar PMP51 Series Pressure Sensor
#Grup produk P111927010
Sebelum PPN:
Rp39.999.900 - Rp44.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -40 to 85 |
|---|---|
| Ambient Temperature (°F) | -40 to 185 |
| Characteristic | Smart and reliable pressure transmitter, with piezoresistive measuring cell and metal welded process isolating diaphragm |
| Maximum Overpressure Limit (bar) | 600 |
| Maximum Overpressure Limit (psi) | 9000 |
| Maximum Turn Down | 20:1 |
| Measuring Cell (bar) | 0.4 to +400 (relative/absolute) |
| Measuring Cell (psi) | 5.8 to 6000 relative/ absolute |
| Measuring Principle | Absolute and gauge pressure |
| Measuring/Application Task | Pressure, Continuous / Liquids |
| Pressure Long Term Stability | 0.1% of URL/year 0.2% of URL/ 5 years 0.25% of URL/ 10 years |
| Pressure Process Connection | Thread: G1/2 to G2, MNPT1/2 to MNPT2; Flange: DN25 to DN80, ASME 1 1/2inch to 4inch, |
| Pressure Process Temperature (°C) | -40 to +130; +150 for 1h |
| Pressure Process Temperature (°F) | -40°F to +266; +302 for 1h |
| Reference Accuracy | Standard 0.1; Platinum 0.075 |
| Smallest Calibratable Span (mbar) | 20 |
| Smallest Calibratable Span (psi) | 0.3 |
| Supply Voltage | 4 to 20mA HART 11,5 to 45V DC (Non Ex): Ex ia: 11,5 to 30V DC PROFIBUS PA: 9 to 32 V DC (Non Ex) FOUNDATION Fieldbus: 9 to 32 V DC (Non Ex) |
| Vacuum Resistance (mbar) | 10 |
| Vacuum Resistance (psi) | 0.15 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Accurate measurement of the process value even in the case of changing process temperatureProcess safety assured with small flush mounted process connections in hygienic applications
For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511
Modular concept for easy replacement of display or electronics
Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Seamless and independent system integration (HART/PA/FF)
Available with mounted manifolds: always fit, always tested for leaks
Use
Field of applicationThe Cerabar PMP51 digital pressure transmitter with metal membrane is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. PMP51 is designed for high pressure applications up to 400bar. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.
Single chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
Measuring range: -1/0 up to +400bar (-15/0 up to +6,000psi)
Accuracy: ±0.1%, "Platinum" ±0.075%
International explosion protection certificates, SIL, hygienic approvals, marine approvals
