Absolute and
gauge pressure
Cerabar PMP21
PMP21-BA1U1QBWBJ
Cost-effective pressure transducer with metal sensor for measurement in gases or liquids

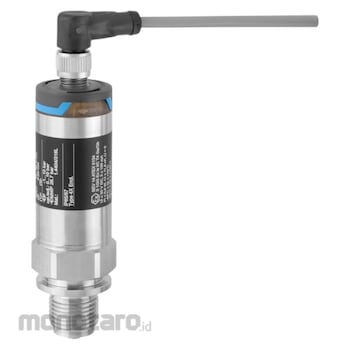

Endress Hauser Cerabar PMP21 Series Pressure Sensor
#Grup produk P111926978
Spesifikasi
| Accuracy (%) | 0.3 |
|---|---|
| Ambient Temperature (°C) | -40 to 85 |
| Ambient Temperature (°F) | -40 to 185 |
| Characteristic | Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm |
| Characteristic/Application | Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm |
| Communication | 4...20 mA, IO-Link |
| Long Term Stability | 0.2% of URL/year |
| Marine Approval | DNV/ GL/ ABS/ LR/ RINA |
| Maximum Overpressure Limit (bar) | 600 |
| Maximum Overpressure Limit (psi) | 9000 |
| Measuring Cell (bar) | +0.4 to +400 |
| Measuring Cell (psi) | +6 to +6000 |
| Measuring Principle | Absolute and gauge pressure |
| Measuring/Application Task | Pressure, Continuous / Liquids |
| Pressure Certificates/Approval | ATEX, FM, CSA, IEC Ex, NEPSI, UK Ex |
| Process Temperature (°C) | -40 to +100 |
| Process Temperature Range (°F) | -40 to +212 |
| Reference Accuracy | 0.3 |
| Supply Voltage (V DC) | 10 to 30 |
| Supply/Communication (V) | 10 to 30 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring rangesHigh reference accuracy of 0.3% together with high long- term stability and repeatability ensures a high quality of process monitoring
Enhanced process availability is underpinned by the stringent use of 316L material and the possibility of a submersible version with IP68 ingress protection rating
The need for documentation and traceability as well as safety in the plant can be supported by PMP21 as it ensures the compliance to various hazardous area and marine certifications and features optional EN10204 3.1 material certificates
Use
Field of applicationThe Cerabar PMP21 is a price-attractive and very compact pressure transmitter. It features a piezo-resistive sensor and is able to measure absolute or gauge pressure from 400mbar up to 400bar. The PMP21 is designed to withstand the harsh conditions in the process industry with ingress protection grades up to IP 68 and high quality materials like 316L. It can be used in most areas as it offers various certifications like hazardous area or marine certificates.
Pressure transducer with piezo-resistive metal sensor to measure absolute or gauge pressure in gases or liquids.
Process connections: Threads
Process temperature: -40 to +100°C (-40 to +212°F)
Process pressure: 400mbar to +400bar (6 to 6,000psi)
Accuracy: ±0.3% of span
International explosion protection certificates, marine approvals
