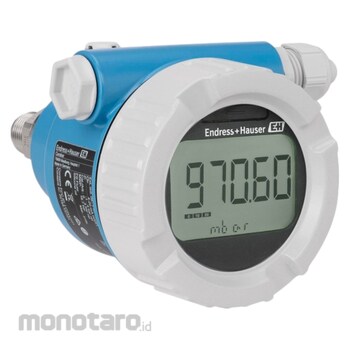

Cerabar PMC51B - pressure transmitter
PMC51B-URBACBA63PBI2WNJD
Smart transmitter with ceramic membrane for highly accurate measurement of liquids and gases
Endress Hauser Cerabar PMC51B Series Pressure Sensor
#Grup produk P111926932
Sebelum PPN:
Rp43.999.900 - Rp59.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -40 to 85 |
|---|---|
| Ambient Temperature (°F) | -40 to 185 |
| Characteristic | Pressure transmitter with ceramic process membran for accurate measurement in liquid or gases. Intuitive and clear wizard for commissioning |
| Long Term Stability | 0.10% of URL/ year 0.25% of URL/ 5 years 0.40% of URL/ 10 years |
| Maximum Overpressure Limit (bar) | 60 |
| Maximum Overpressure Limit (psi) | 900 |
| Maximum Turn Down | 100:1 |
| Measuring Cell (bar) | 0.1 to 40 |
| Measuring Cell (psi) | 1.5 to 600 |
| Measuring Principle | Absolute and gauge pressure |
| Measuring/Application Task | Pressure, Continuous / Liquids |
| Pressure Process Connection | Thread: G1/2 to G2, R1/2, MNPT1/2 to MNPT2, FNPT1/2; Flange: DN25 to DN80, NPS 1inch to 4inch |
| Process Membrane Material | Ceramic |
| Process Temperature (°C) | -40 to +100 |
| Process Temperature Range (°F) | -40 to +212 |
| Reference Accuracy | Standard: up to 0.075; Platinum: up to 0.055 |
| Smallest Calibratable Span (mbar) | 5 |
| Smallest Calibratable Span (psi) | 0.075 |
| Supply Voltage (V) | Ex d, Ex e, non-Ex: 10.5...35V DC Ex i: 10.5...30V DC |
| Vacuum Resistance (mbar) | 0 abs. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Wireless control of the device in the process area with the SmartBlue App. Process interruption is not necessary.Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
Use
Field of applicationThis transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.
Pressure measuring range: up to 40 bar (600 psi)
Fully vacuum resistant up to +100°C (212°F) process temperature
Accuracy: up to +/-0.055%
