Absolute and gauge pressure

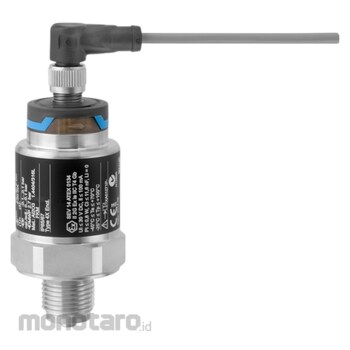

Cerabar PMC21
PMC21-BA1U1KBWTJA
Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids
Endress Hauser Cerabar PMC21 Series Pressure Sensor
#Grup produk P111926899
Sebelum PPN:
Rp13.999.900 - Rp19.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -40 to 85 |
|---|---|
| Ambient Temperature (°F) | -40 to 185 |
| Characteristic | Cost effective pressure transducer, capacitive sensor with ceramic measuring diaphragm |
| Characteristic/Application | Cost effective pressure transducer, capacitive sensor with ceramic measuring diaphragm |
| Communication | 4...20 mA, IO-Link |
| Design Approval | EN 10204-3.1 Final inspection report Cleaned from oil and grease Cleaned for oxygen applications |
| Long Term Stability | 0.2 % of URL/year |
| Marine Approval | RINA, KR |
| Maximum Overpressure Limit (bar) | 60 |
| Maximum Overpressure Limit (psi) | 900 |
| Measuring Cell (bar) | +0.1 to +40 |
| Measuring Cell (psi) | +1.5 to 600 |
| Measuring Principle | Absolute and gauge pressure |
| Measuring/Application Task | Pressure, Continuous / Liquids |
| Pressure Certificates/Approval | ATEX, FM, CSA, IEC Ex, NEPSI, UK Ex |
| Process Connection | Threads: G1/4, G1/2, MNPT 1/4, MNPT 1/2, DIN13, JIS R1/2 |
| Process Temperature (°C) | -25 to +100 |
| Process Temperature Range (°F) | -13 to +185 |
| Reference Accuracy | 0.3 |
| Supply Voltage (V DC) | 10 to 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring rangesHigh reference accuracy of 0.3% together with high long- term stability and repeatability ensures a high quality of process monitoring. High quality guaranteed by 100% test coverage during production
The high process availability even in difficult process environment is guaranteed due to various cleaning options and connection options. Furthermore IP68 version are available
The need for documentation and traceability as well as safety in the plant can be supported by PMC21 as it ensures the compliance to various hazardous area and marine certifications and features optional EN10204 3.1 material certificates
Use
Field of applicationThe Cerabar PMC21 is a very compact pressure transmitter. It features a capacitive, oil-free ceramic sensor and is able to measure absolute or gauge pressure from 100mbar up to 40bar. It is designed to withstand the harsh conditions in the process industry with ingress protection grades up to IP68 and highly abrasion resistant Ceraphire membrane as well as high quality 316L housing. It can be used in most areas as it offers various certifications like hazardous area or marine certificates.
Pressure transducer with capacitive, oil-free ceramic sensor to measure absolute or gauge pressure in gases or liquids.
Process connections: Threads
Process temperature: -25 to +100°C (-13 to +212°F)
Process pressure: 100mbar to +40bar (1,5 to +600psi)
Accuracy: ±0.3% of span
International explosion protection certificates, marine approvals, cleaning for oxygen applications
