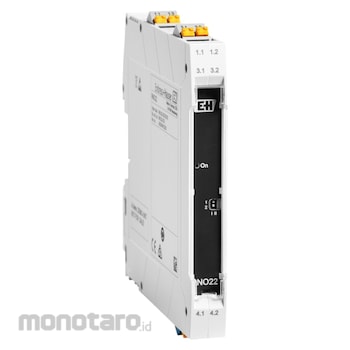

RNO22 output amplifier
RNO22-AA1A
Output amplifier, 1/2-channel for 4 to 20 mA, HART® transparent with 24 V DC and line fault detection, optionally with SIL and Ex
Endress Hauser 1 Channel Power Supply Repeater
#Grup produk P111926817
Sebelum PPN:
Rp9.999.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Certificates | ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1) D [Ex ia Da] IIIC, II3G Ex ec IIC Gc DNV |
|---|---|
| Function | 1-channel 2-channel |
| Input (mA) | 0/4…20 / HART passive |
| Measuring Principle | Active barrier; Output isolating amplifier |
| Measuring/Application Task | Power supplies & barrier |
| Operation | DIP switch, HART |
| Output (mA) | 0/4 to 20 / HART active |
| Power Supply (V) | 24 DC |
| SIL Rating | SIL 2 SC 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Safe and reliable control of active components in hazardous areasQuick and easy wiring and commissioning: plug-in terminals, power supply via DIN rail bus connector
Compact housing: up to 2 channels on 12.5 mm (0.49 in) for efficient use of space in control cabinets
Accurate and reliable signal transmission
Line break and short-circuit monitoring
Use
Field of applicationThe RNO22 output isolating amplifier is used to safely control active components such as control valves, actuators, I/P converters or indicators. The intrinsically safe device separates and transmits analog 0/4 to 20 mA signals and offers bidirectional HART® transparency for digital communication with smart actuators.
The compact interface device with up to two galvanically isolated channels enables open- and short-circuit monitoring for reliable operation of critical equipment.
1- or 2-channel output isolating amplifier
Reliable control of active components such as control valves, current-to-pressure transducers
Transmission and galvanic isolation of 0/4 to 20 mA signals
Intrinsically safe [Ex-ia], installation in Ex Zone 2
Suited for use in safety instrumented systems up to SIL 2 (SC 3) in accordance with IEC 61508
Bidirectional transmission of digital HART® communication signals
Ambient temperature range: –40 to 70 °C (–40 to 158 °F)
