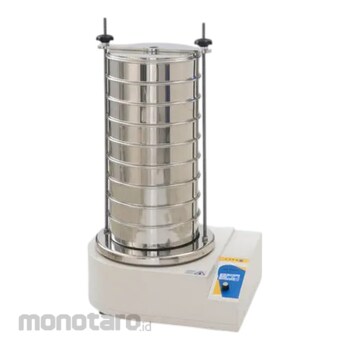

CISA Electromagnetic Sieve Shaker
#Grup produk P111729287
Spesifikasi
| Application | Granulometric separation |
|---|---|
| Diameter of Sieve (mm) | 200 to 315 |
| Dimensions (mm) | 565x470x220 |
| Dynamic of Sieving (vibration/minute) | 3000/3600, depending on the type of electrical system (50/60 Hz) |
| Electrical Connection | Single phase with protective earth |
| Maximum Number Sieve | 8 (Ø 300/305/315x70mm high); 12 (Ø 200/203x50mm high) |
| Maximum Vibration Amplitude (mm) | 2 |
| Maximum Weight of Sample (kg) | 6 (Depending on the characteristics of the product) |
| Particle Motion | Three-dimensional |
| Power (W) | 450 |
| Range of Sieving (µm) | 20 to 125000 |
| Time of Test (minute) | 1 to 99 |
| Type of Equipment | Electromagnetic. Silent. |
| Type of Sieving | Dry / Wet |
| Voltage (V/Hz) | 230-125/50-60 |
| Work Cycle | Continuous / discontinuous mode (with intervals of 10 seconds) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Digital electromagnetic sieve shaker, verysilent, specially designed to minimize thenoise and the transmission of vibration.Suitable for granulometric tests, using sieves Ø200, 203, 250, 300, 305 and 315 mm.It allows the repeatability of the tests due todigital control of amplitude and sieving time.It incorporates the latest technology oncontinuous and discontinuous sieving processand a system that adjusts the vibrationdepending on the number of sieves.The three-dimensional movement of particles-combining a vertical displacement with arotation of the sample for the screen surface_x0002_reduce the time of sieving.Quick fixation of screens using the Cisa-Press 2system which reduces the time of preparationof the equipment. It allows out 8 sieves of 70mm or 12 sieves 50 mm high.It’s possible to do dry and wet tests on thesame equipment.Recommended for materials with density> 0.8gr/cm3.
