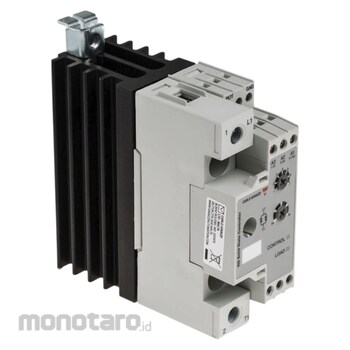

RGC1P Series SSR Power Controllers
The RGC1P series of power controllers are supplied with integrated heatsink and are used to control output power of single phase loads with an analogue control input. Switching modes are selectable using a knob on the front of the controller and allows phase angle control, full cycle control, advanced full cycle control and soft starting.
The output of the RGC1P power controllers is protected against overvoltages by an integrated varistor across the output.
CARLO GAVAZZI Power Controller
#Grup produk P111701403
Spesifikasi
| Input Type | Analogue |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
• 1-pole analogue switching AC solid-state contactors• Integrated heatsink
• Selectable modes of operation;
- Phase angle
- Full cycle x1, x4 or x16
- Advanced full cycle specific for short wave infrared heaters
- Soft starting for limiting inrush current of loads having a high temperature coefficient
• Rated operational voltage up to 660 V ac
• Rated operation current up to 63 A ac
• Control inputs: 4-20 mA, 0-5 V, 1-5 V, 0-10 V, external potentiometer
• Integrated varistor protection on output
• 2 Front LEDs indicate status of load and control
• 100 kA short circuit current rating according to UL508
• DIN Rail or panel mounting
