Certificate
CE Marked
cULus Listed
Software
EasyBuilder Pro - Include Easy Access

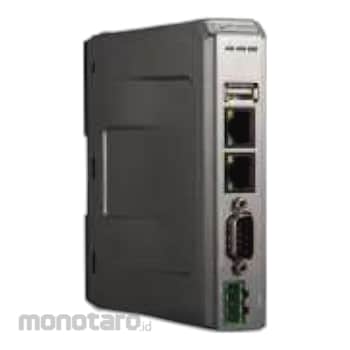

Weintek Smart Monitoring & Data Acquisition HMI Series
#Grup produk P111557635
Spesifikasi
| COM Ports | COM1: RS-232, COM2: RS-485 2W/4W, COM3: RS-485 2W |
|---|---|
| Dimensions (WxHxD) (mm) | 109x81x27 |
| Enclosure | Plastic |
| Environment Relative Humidity (%) | 10-90 (non-condensing) |
| Ethernet Port | 10/100/1000 Base-Tx2 |
| Flash Memory (MB) | 256 |
| Input Power (V) | 24±20%DC |
| Isolation Resistance (MΩ) | Exceed 50 at 500VDC |
| Mount | 35mm DIN Rail Mounting |
| Operating Environment Temperature (°C) | 0-50 (32-122°F) |
| PCB Coating | Yes |
| Power Consumption (mA) | 230 @ 12VDC; 115 @ 24VDC |
| Power Isolation | Built-in |
| Processor | 32-bit RISC 600MHz |
| Protection Structure | IP20 |
| RAM (MB) | 256 |
| RTC | Built-in |
| Storage Environment Temperature (°C) | -20-60 (-4-140°F) |
| Vibration Endurance Frequency (Hz) | 10 to 25 (X, Y, Z direction 2G 30 minutes) |
| Voltage Resistance (V) | 500 AC (1 min.) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ulasan Produk
Tidak ada ulasan
