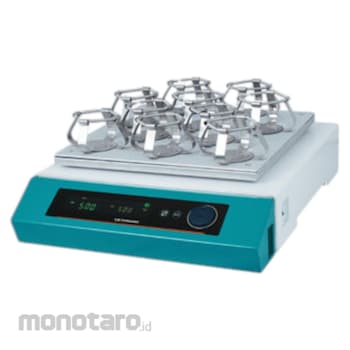

JEIO TECH Dual Action Shaker

Sebelum PPN:
Rp60.999.900
Spesifikasi
Amplitude Size (inch)0.8
Amplitude Size (mm)19.1
Body Dimensions (WxDxH) (inch)13.9x15.3x5.7
Body Dimensions (WxDxH) (mm)354x388x146
Dimensions Platform (WxD) (inch)12.6x10.2
Maximum Speed Per Permissible Load (rpm)500 (Max. 10kg), 300 (Max. 16kg)
Motion TypeOrbital/Reciprocal
Platform Dimensions (WxD) (mm)320x260
Speed Range (rpm)20 to 500
Speed Stability (rpm, %)1
Timer (Count-Down)999hour 59minute

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature
Performance
Dual-action shaking motion: Orbital / Reciprocating.
Microprocessor PID control / Shaking speed calibration.
Competitive high shaking speed up to 500 rpm.
Shaking motion in various amplitude.
- 12.7mm or 19.1mm for OS-2000
- 19.1mm or 25.4mm for OS-3000
- 19.1mm or 25.4mm for OS-4000
Wide speed range even with heavy workload.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
Pleasant test environment by the smooth acceleration and deceleration control.
Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.
Convenience
User friendly control panel.
- Lab Companion’s unique VFD-bright, clear, easy to read.
- Durable membrane touch switch and control knob.
Easy-set digital timer. (1 min. to 999 hr. 59 min.)
Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Speed is basically set and displayed in increments of 1 rpm. Also speed increment interval can be set among 1, 5, 10 rpm according to users preference.
RS-232 port and USB port for external control and data collection.
Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
Safety
Automatic run after power interruption.
Shaking speed deviation alarm.
Over-current protection, Stalled platform check.
