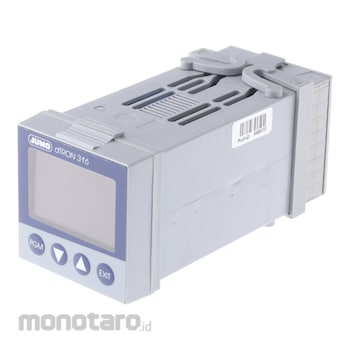

Jumo Temperature Controller
The Jumo dTRON series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 48mm(1/16 DIN) device. It has a single analogue input, two relays and two logic inputs or two logic outputs. This is robust equipment that includes 4, freely programmable devices in different DIN formats for controlling temperature, pressure and other process variables. The instruments can be used as 2-state, 3-state, modulating or continuous controllers. The electrical connection at the back is established via screw terminals.
Inclusions:
Controller, seal, fastening elements, operating instructions.
JUMO dTRON PID Temperature Controller
#Grup produk P111542350
Sebelum PPN:
Rp19.999.900 - Rp47.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Additional Function | ON/OFF, PID |
|---|---|
| Display Colour | Red/Green |
| Maximum Operating Temperature (°C) | 55 |
| Minimum Operating Temperature (°C) | 0 (zero) |
| Series | dTRON |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
2 self-optimisation processes2 timer functions
4 limit comparators
4 programmable set points, 2 parameter sets
Bright LCD display for viewing different process parameters
Freely programmable controller structures (2-point and 3-point step controllers and continuous-action controller)
Maximum 2 freely programmable analogue inputs
Minimum sampling time is 50ms
Profibus DP interface
Program function with 8 sections or ramp function
Programmable as a differential, humidity or ratio controller
Quick and user-friendly configuration via set-up program
RS422/485 interface
Tried-and-tested, clearly laid-out operating and configuration diagram
Up to 8 binary outputs
Certifications
EN 14597
IP20 rated
IP65 rated
