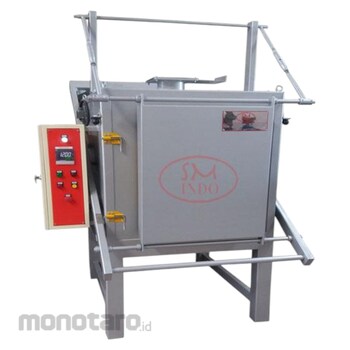

Suhatherm Vertical Lift Door Furnace
#Grup produk P111540617
Sebelum PPN:
Rp329.999.900 - Rp379.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Electrical Installed Power | 3 Phase, 380VAC, 50-60Hz, ± 25kW |
|---|---|
| Fresh Air Inlet & Exchaust Dumper Model | Manual Adjustable Sliding Dumper (Inlet at Rear & Outlet at Furnace Roof) |
| Furnace Body Frame Material | Combination of Mild Steel Angle Bar & Streep Bar |
| Furnace Body Painting Material | Epoxy Base Primer & Finished by Protective Paint |
| Furnace Body Sheath Material | Mild Steel t. 5 mm |
| Furnace Body Support Leg Material | Mild Steel RHS Tube |
| Furnace Door | Manual lifting up door |
| Heating Element Material | Fe-Cr-Al heating alloy |
| Heating Element Model | Open Coil Spirally Heater supported by High Grade Ceramic Tube |
| Heating Element Placement | Placed on the left & right side of furnace wall |
| Heating Power (Kcal/hour) | 27500 |
| Heating Power (kW) | 25 |
| Housing Material | Steel sheet 5mm |
| Maximum Operating Temperature (°C) | 1200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Description
• Furnace wall mounting electrical control panel
• Industrial process thermocouple type K with ceramic protection tube & aluminum protection head Ex. SMINDO
• Heater power switching control : Full proportional heating control by SCR power regulator
Furnace Lining
Multi Layer Insulation material to ensure excellent heat efficiency with combination of insulation material :
- Fire Brick 1500°C Class & Insulating Brick 1300°C Class
- Insulating Castable 1260°C Class & Low Cement Castable 1500°C Class
- Ceramic Fibre Blanket, Board & Paper 1500°C Class
Thermocontroller:
- PID control, Fuzzy PID control, self-tuning & auto tuning control
- Indication accuracy : ±0.3% ± 1 digit
- Up to 64 heating steps and programmable to :
- 1 Nos heating patterns with 64 heating steps/pattern
- 2 Nos heating patterns with 32 heating steps/pattern
- 4 Nos heating patterns with 16 heating steps/pattern
- 8 Nos heating patterns with 8 heating steps/pattern
• Industrial process thermocouple type K with ceramic protection tube & aluminum protection head Ex. SMINDO
• Heater power switching control : Full proportional heating control by SCR power regulator
Furnace Lining
Multi Layer Insulation material to ensure excellent heat efficiency with combination of insulation material :
- Fire Brick 1500°C Class & Insulating Brick 1300°C Class
- Insulating Castable 1260°C Class & Low Cement Castable 1500°C Class
- Ceramic Fibre Blanket, Board & Paper 1500°C Class
Thermocontroller:
- PID control, Fuzzy PID control, self-tuning & auto tuning control
- Indication accuracy : ±0.3% ± 1 digit
- Up to 64 heating steps and programmable to :
- 1 Nos heating patterns with 64 heating steps/pattern
- 2 Nos heating patterns with 32 heating steps/pattern
- 4 Nos heating patterns with 16 heating steps/pattern
- 8 Nos heating patterns with 8 heating steps/pattern
Peringatan
Disarankan untuk kontak terlebih dahulu untuk stok dan diskusi aksesoris produkFeature
- PWM system for very good linear control- High accuracy and fast response
- Able to keep steady temperature very well
- Extends heater life
