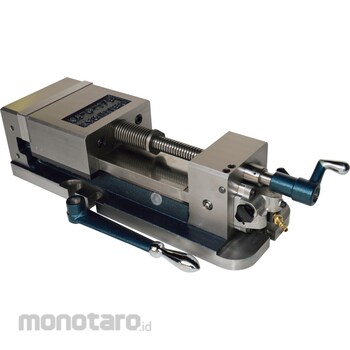

KYORITSU Air Machine Vise KA Type
#Grup produk P111529960
Kondisi Barang:
Authorized Partner
Spesifikasi
| Height Sliding Surface (mm) | 93 |
|---|---|
| Hose connection | Coupler 22SH (1/4) |
| Jaw Opening (mm) | 180 |
| Mass (kg) | 50 |
| Material | Body: FC250, Base: S50C (quenched) |
| Maximum Clamping Force (MPa) | 0.6 |
| Maximum Clamping Force (kN) | 16 |
| Mouth Depth (mm) | 55 |
| Overall Height (mm) | 147 |
| Overall Length (mm) | 525 |
| Overall Width (mm) | 184 |
| Stroke (mm) | Movable: 6 |
| TRUSCO Number | 216-5722 |
| Tip Width (mm) | 175 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It is a specification change model of KA-175. As a KA type, the work can be gripped deeply, and a large work with a maximum opening of 180 mm can be firmly gripped. An air machine vise that handles everything from milling to drilling. A vise suitable for automatic operation at machining centers.
Feature
This is a modified model of KA-175. As a KA type, it has a deep grip on workpieces, and with a maximum opening of 180mm, it can firmly grip large workpieces.
This is an air machine vise that can handle everything from milling work to drilling machine work.
This vise is also suitable for automatic operation in machining centers.
