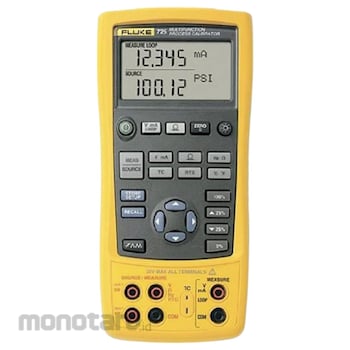

FLUKE Multifunctional Process Calibrator
#Grup produk P111521843
Spesifikasi
| Accuracy | [Basic generated DC Voltage] 0.02%+2, [Basic generated DC Current] 0.02%+2, [DC Voltage] ±(1%+5 counts), [Resistance] ±(1%+5 counts) |
|---|---|
| Basic Accuracy | [DC Voltage] 0.02%+2, [DC Current] 0.02%+2, [Resistance] Measurement 4-wire system (3-wire system) = 0.1/0.5/1(0.15/1.0/1.5)Ω, Source = 0.15 or 0.1 /0.5/1Ω |
| Battery | 4 AA alkaline batteries (25 hours, 12 hours with 12mA 500Ω load) |
| DC Voltage | 90.00mV/20.000V (lower display)/30.000V (upper display) |
| DC Voltage (mV/V) | 100.00/10.000 |
| DC current (mA) | 24.000 |
| Dimensions (mm) | 200x96x47 |
| Included Accessories | TL75 Test Lead Red Black, AC175 Alligator Clip Red Black, Stackable Alligator Clip Test Lead |
| Inrush Current (ms) | 100 (effective value) |
| Probe | Sold separately |
| Resistance | Measurement = 0 to 400/400 to 1.5k/1.5k to 3.2kΩ, Source = 15.0 to 400.0/400 to 1500/1500 to 3200Ω |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Calibrate most process parameters- Simultaneously check measurement/source and measurement/measurement with two independent inputs
- Pressure measurement and calibration possible by using a pressure module
