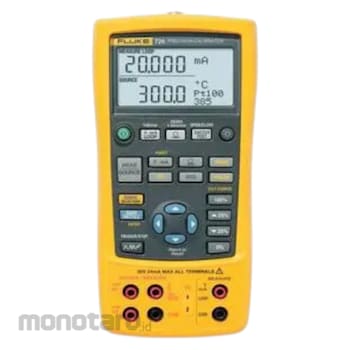

FLUKE High Precision Multi-Function Process Calibrator
#Grup produk P111521700
Spesifikasi
| Accuracy | [Generated DC Voltage basics] 0.010%+10μV/0.010%+10mV, [Generated DC Current basics] 0.010%+2, [DC Voltage] ±(1%+5 counts), [Resistance] ±(1%+5 counts )) |
|---|---|
| Basic Accuracy | [DC Voltage] 0.001%+10μV/0.010%+2mV, [DC Current] 0.010%+2, [Resistance] Measurement = 0.015%+0.05Ω/0.015%+0.5Ω, Source = 0.15%+0.1Ω or 0.015% +0.05Ω/0.015%+0.5Ω/0.015%+0.5Ω |
| Battery | AA alkaline battery x 4 |
| DC Voltage | 90.00mV/20.000V (lower display)/30.000V (upper display) |
| DC Voltage (mV/V) | 100.000/20.000 |
| DC current (mA) | 24.000 |
| Dimensions (mm) | 200x96x47 |
| Function | (HART resistance) OK |
| Included Accessories | TL75 Test Lead Red Black, AC175 Alligator Clip Red Black, Stackable Alligator Clip Test Lead |
| Inrush Current (ms) | 100 (effective value) |
| Probe | Attached (i25OO-18) |
| Resistance | Measurement = 0.00 to 400.00/401.0 to 4000.0Ω, Source = 5.0 to 400.0/400 to 1500/1500 to 4000Ω |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Calibrate most process parameters- Simultaneously check measurement/source and measurement/measurement with two independent inputs
- Pressure measurement and calibration is possible by using a pressure module. External measurement with thermocouple. Switchable internal cold junction compensation
