-PF, kW, kVAR, kVA, kWh, and Peak demand measuring
-Clearly vision with 3 rows of red LED 7segments Display
-3 phase voltage direct input on instrument terminal
-Able to connect with standard CT secondary 5 A.
-Programmable multiplier for CT & PT ratio 1 to 1000
-Standard size with 96 x 96 x 80 mm.(DIN 1/4)
-Panal mounting
-Interface with computer by RS-485, Modbus Protocol.

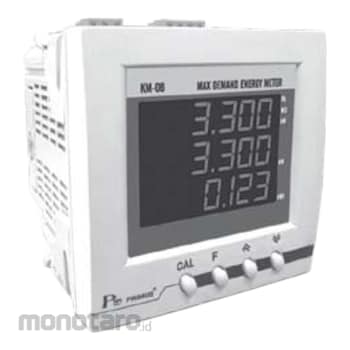

Primus Power and Energy Meter
#Grup produk P111518487
Spesifikasi
| Baud Rate (bps) | 1200, 2400, 4800, 9600 |
|---|---|
| CT Ratio | 1-1000 |
| Communication | RS-485 MODBUS |
| Display | 3 Row Red LED 7 Segment |
| Frequency (Hz) | 45-55 |
| Input Current Range (A) | 5 |
| Input Frequency Range (Hz) | 45-55 |
| Input Voltage Range (Vp) | 250 |
| Operating Voltage | 3 Phase 4 Line |
| PT Ratio | 1-1000 |
| Power Supply (V) | 90-270 AC |
| The Accuracy of the Frequency Measurement (Hz) | ±0.1 |
| The Accuracy of the Phase Current Measurement | ±0.1% F.S. |
| The Accuracy of the Phase Voltage Measurement (V) | ±0.1% F.S. |
| Total Active Power Measurement Accuracy (kW) | ±0.5% F.S. |
| Total Apparent Power Measurement Accuracy (kVA) | ±0.5% F.S. |
| Total Energy Consumption Measurement Accuracy Class (kWh) | 1 |
| Total Power Factor Measurement Accuracy | ±0.002 |
| Total Reactive Power Measurement Accuracy (kVAR) | ±0.5% F.S. |
