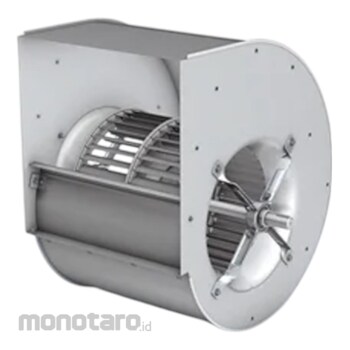

Scroll casing with forward curved blades - doublet inlet
With rectangular side frame and without outlet flange. Light-duty bearing and pressed steel bearing supporting brackets. C version has also three steel bars with the ends welded to three corners of both the side frames.
Nicotra Gebhardt Driven Centrifugal Fans
#Grup produk P111373705
Sebelum PPN:
Rp8.599.900 - Rp13.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Air Flow (m³/hour) | 180000 |
|---|---|
| Density of Media (kg/m³) | 1.2 |
| Pressure (PA) | 1400 |
| Tolerance Class | 2 (DIN 24166) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
This kind of fans are specially conceived for mechanical ventilation, at temperatures from 20 °C to +40 °C on S, SC, G2L and SC2 models, or up to 100 °C on AR, TIC, G2C, G2C-C2, G3C, G3C-C2 models. Air performance and sound data have been obtained in a laboratory registered by AMCA for AMCA 210/99 air performance testing and they are within the tolerances allowed by the DIN 24166 standard for Class 2.Single, twin and triple fans
- Impeller size (diameter/width) from 7/7 to 30/28
- Lap-jointed scroll of galvanized steel assembled with roller-lock seaming (sizes up to 18/18) or with Pittsburgh lock seam (for sizes larger than 18/18)
- Straight cut off plate at fan outlet
- Impeller with forward curved blades of galvanized steel, optimized for the best efficiency and quietness
- Galvanized steel shaft
