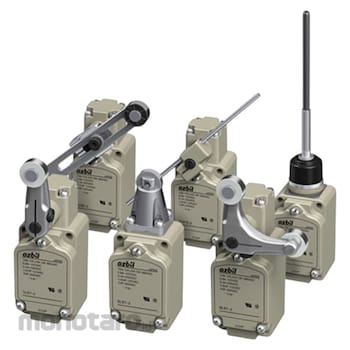

UL/CSA/CE/CCC marked product. A two-circuit double break basic switch is built into a robust aluminum die-cast case. Oil-resistant, water-resistant and dust-proof construction (protection class IP67).
Attribute
specification : Conditional rated short circuit current: 1000A, switching overvoltage: Category III (IEC 60204-1)
Withstand voltage : Between terminals of the same polarity: 1000V 50/60Hz for 1 minute (standard operating characteristics type) / AC600V 50/60Hz for 1 minute (high sensitivity mailer lever type), between each terminal and non-charging metal parts: 2000V 50/60Hz for 1 minute, between each terminal and earth: AC2000V 50/60Hz for 1 minute (only G with earth terminal)
Rated current (A) : Silver contacts: 10, gold-plated contacts: 1
Operating force (OF) (N) : 8.9
Electrical life (rated load) : Standard load type internal switch: 500,000 times or more, rated load/standard load double sealed type internal switch: 200,000 times or more, rated load/micro load type internal switch: 2 million times or more, rated load (at switching frequency of 20 times/min)
Mechanical Life : Over 10 million times
Strength : Actuator: 5 times OF in the operating direction for 1 minute, Terminal: Withstands a tightening torque of 1.5 Nm for 1 minute, Cord removal: 100 N or more
Contact resistance (initial value) : Standard load type: 50mΩ or less (DC 6-8V, current 1A, voltage drop method), Micro load type: 100mΩ or less (DC 6-8V, current 0.1A, voltage drop method), Connector: 40mΩ or less (excluding fixed resistance such as cord)
Minimum operating voltage (V) : 24/12 (standard load type), 5 (minor load type)
Minimum current draw (mA) : 10/20 (standard load type), 10 (minor load type)
Various Certifications : EN60947-5-1(TUV)/UL508(UL)/CSA C22-2 No.14(C-UL)/GB14048.5(CQC)
Movement PT : High sensitivity 10°
Overall Movement TT (Reference) : High overtravel 80°
Recommended tightening torque (N・m) : Main unit: Front 5-6 (M5 hexagon socket bolt) / Back 5-6 (M6 screw), Lever: 4-5.2 (M5 hexagon socket bolt), Terminal: 1.0-1.4 (M4 bind head screw with toothed washer), Cover: 1.3-1.7 (M4 pan head screw with spring washer), Head: 0.8-1.2 (M3.5 pan head screw with spring washer), Locknut: 2-3 (M22 screw, for 3LS), Piano wire lever: 0.6-0.8 (M3 hexagon set screw), Connector tightening: 0.4-0.6 (M12 ring)
Rated operating voltage (V) : AC120/240, DC30
Operating humidity range (%RH) : Below 98
Azbil (Yamatake) General Purpose Compact Limit Switch LS Series
#Grup produk P111313721
Spesifikasi
| Actuator Type | Roller lever type |
|---|---|
| Option | AC/DC 12-125V with LED lamp |
| Type | Reflective |
| Protective Structure | IP67 (IEC 60529, JIS C 0920) |
| Cable Length (m) | 5 |
| Allowable Operating Speed | 1.7mm/s to 0.5m/s (minimum speed: unstable contact state for 0.1s or less, maximum speed: no actuator damage) |
| Compliance | NECA C 4508/JIS C 8201-5-1 IEC 60947-5-1 |
| Contact Form | Two-circuit double break |
| Contact Material | Standard load type: silver rivet, Micro load type: silver with gold plated rivet |
| Impact Resistance (m/s2) | 300 Free position and full travel position (contact opening time is 1 ms or less in the free position and full travel position (NECA C 4508)) |
| Insulation Resistance (MΩ) | 100 or more (DC500V insulation resistance tester) |
| Operating Temperature Range (°C) | -10 to 70 (no freezing) |
| Permitted Operation Frequency (times/minute) | 60 or less |
| Pollution Level Usage Environment | Pollution level 3 (EN60947-5-1) |
| Rated Frequency (Hz) | 45-65 and dc |
| Rated Impulse Withstand Voltage (kV) | Between each terminal and earth: 2.5, Between terminals of the same polarity: 2.5 |
| Rated Insulation Voltage (V) | AC125/250 |
| Short Circuit Protection Device | TUV fuse F10A (IEC60127)/CQC silver contact fast acting fuse: 15A, gold contact fast acting fuse: 3A/TUV |
| Terminal Shape | M4 screw (binding screw with toothed washer), DIN 4-pin connector (M12 size), pre-wired |
| Vibration Resistance | Double amplitude 1.5 mm, frequency 10 to 55 Hz, continuous 2 hours, free position and limit travel position (contact opening 1 ms or less in free position and limit travel position (NECA C 4508)) |
