OIML R60 C4, C6
■ The stainless steel cover makes this product highly resistant to corrosion and
the environment, and its protection grade is IP68 (Water depth: 1.5 m/100 hours).
■ Digital load cells are easy to adjust, diagnose and maintenance.
■ Advanced load design for truck scales.
■ Compression type.
Surge countermeasure Built-in gas tube arrester etc.
Mass Approx.11kg (including mounting bracket) Approx.6kg (load cell body)

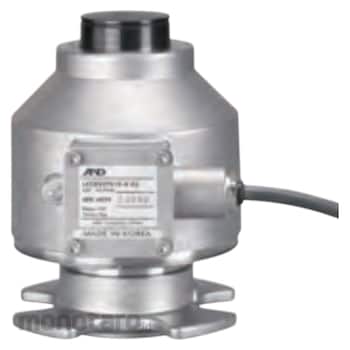

AND Digital Compression Stainless Steel Loadcell
#Grup produk P111292367
Spesifikasi
| Cable Diameter/Length (m) | 4 Core Shielded Cable Ø8 / 12 |
|---|---|
| Combined Error (%) | C4 : 0.025 of R.O. C6 : 0.016 of R.O |
| Compensated Temperature (°C) | -10 to 40 |
| Dustproof/Waterproof | IP68 (Depth of water 1.5m / 100h) |
| Maximum Excitation Voltage (V DC) | 12 |
| Maximum Safe Overload (%) | 150 of R. C |
| Mounting Bracket | No |
| OIML R 60 | C4 |
| Operating Temperature (°C) | -20 to 6 |
| Output Signal | RS-485 2 Wire Type |
| Recommended Excitation Voltage (V DC) | 8 |
| Temperature coefficient | Zero (0.019% of R.O./10°C Typ), Span (0.010% of Load/10°C Typ) |
