YOKOGAWA Temperature Controller Module
#Grup produk P111158610
Spesifikasi
| Communication (Option) Number | 1 |
|---|---|
| Communication (Option) Type | RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet |
| Control Algorithm | ON/OFF, PID (Continuous, Time-proportional), Heating/Cooling, Position-proportional |
| Control Outputs (MV) Type | Relay, Voltage Pulse, Current |
| Control Scan Period (msec) | 200 |
| Current Trans Input (Option) Number | 2 |
| Digital Inputs (Max) | 7 |
| Digital Inputs (Std) | 2 |
| Digital Inputs Type | SP No. Change, PID No. Change, A/M Change, etc |
| Digital Outputs (Max) | 8 |
| Digital Outputs (Std) | 3 |
| Digital Outputs Function | PV High, PV Low, Dev High, etc |
| Indication Accuracy (%) | ±0.1% of F.S. |
| Loop Power Supply (LPS) (Option) Number | 1 |
| Loop Power Supply Voltage (VDC) | 21.6 to 28.0 |
| PV Input Type | 1 Universal input (TC, RTD, mV, V, mA) |
| PV/SP Data Display | 14-segment, 5 digits, Bar graph LCD display |
| Power Supply (VAC/VDC) | 100 to 240 VAC (+10%, -15%) or 24 VAC/DC (+10%, -15%) (option) |
| Retransmission Number | 1 |
| Retransmission Type | PV, SP, OUT, etc |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

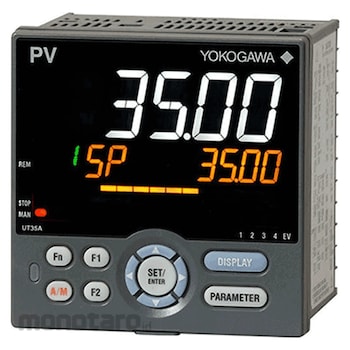

The UT35A and UT32A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT35A/UT32A also support open networks such as Ethernet communication.
Feature
- 4 target setpoints (PID numbers) available as standard- 3 alarm independent common terminals available as standard
- Ladder sequence programs can be built
- Simple operation
- Up to 8 DOs (combinations available)
- Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese and Korean) available. Please specify the desired language when ordering.
- Detailed code model available to customize specifications best suited to you.
