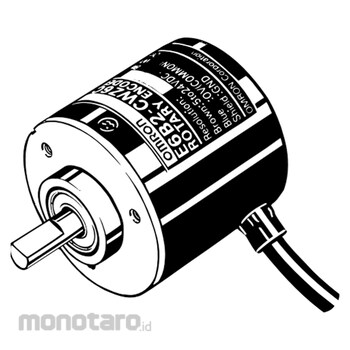

OMRON Encoder
#Grup produk P111157596
Spesifikasi
| Control Output Type | NPN open collector |
|---|---|
| Current Consumption (mA) | 80 max. |
| Degree of Protection (IEC) | IP50 |
| Diameter (mm) | 40 |
| Inrush Current (A) | Approx. 9 (0.3 ms) |
| Load Power Supply Voltage (VDC) | 30 max. |
| Maximum Permissible Rotation (rpm) | 6000 |
| Maximum Response Frequency (kHz) | 100 |
| Moment of Inertia (kg·m²) | 1 x 10^-6 max. |
| Output Phases | A, B, and Z |
| Phase Difference on Output (°) | 90±45 ° between A and B (1/4 T ± 1/8 T) |
| Power Supply Voltage (V DC) | 5 to 24 (-5% to +15%) Ripple (p-p) 5% max. |
| Residual Voltage (V) | 0.4 max. (at sink current 35 mA) |
| Resolution (P/R) | 1000 |
| Rise and Fall Times of Output (µs) | 1 max. (Cable length: 2 m max., output voltage: 5 V, load resistance: 1 kΩ) |
| Shaft Loading Radial (N) | 30 |
| Shaft Loading Thrust (N) | 20 |
| Sink Current (mA) | 35 max. |
| Starting Positional Point | Equipped |
| Starting Torque (mN·m) | 0.98 max. |
