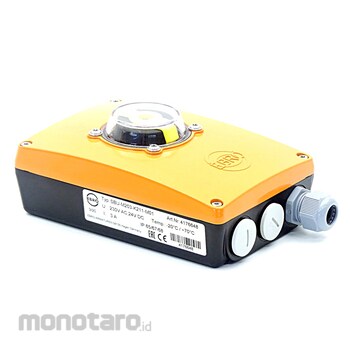

The Switch box type SBU is designed for direct mounting to pneumatic actuators according to VDI / VDE 3845 (AA2).
It is suitable for mounting on EBRO pneumatic actuators.
• Direct mounting according to VDI/VDE 3845.
• Bracket construction possible
• Small size due to compact design
• The operating voltage for the micro switch is freely selectable with
potential-free, change- over contacts
• Cover with captive screws
• Separate terminal blocks for sensors and solenoid valves
• Colour-coded, two-pole spring-loaded terminals
• Labelling of the terminals directly on the circuit board
• Wiring diagram in cover
• Connection of a third switch, as well as a solenoid valve with two
coils, is possible
• 360° position indicator
• Switches are connected directly to circuit board
EBRO ARMATUREN Switch Box
#Grup produk P111154872
Spesifikasi
| Housing | Aluminium (powder coated) |
|---|---|
| Sealing | NBR |
| Protection Class | IP 65, IP 67 and IP 68 (without solenoid valve plug) |
| Temperature Range (°C) | -20 to +70 |
| Screw | Stainless Steel A4 |
| Adjusment Range (°) | to 189 |
| Contact Rating | Potential-free 230V AC, 3A |
