This is the most standard type series. It
can be used for a wide range of purposes, including various machine tools and equipment.
It is an alternate type general-purpose foot switch that is ideal for continuous current. The built-in switch uses a push button switch.

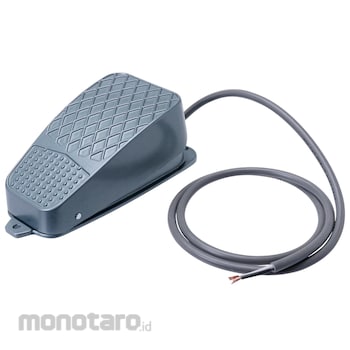

Kokusai Dengyo Medium-sized Aluminum Foot Switch SF Series
#Grup produk P111140453
Spesifikasi
| Color | Metallic R25-635 equivalent |
|---|---|
| Rating | AC250V 6A |
| Contact Configuration | 1a |
| Operating Characteristics | Alternate |
| Attached Cord | VCTF 2 cores x 0.75mm2 x 1m |
| Ambient Humidity (%RH) | 85 or less |
| Ambient Temperature (°C) | -5 to 40 |
| Built-in Switch | Locking push button |
| Insulation Resistance (MΩ) | Over 100 (DC500V) |
| Material Body/Cover | Aluminium Alloy Die-Cast |
| Material Return Spring | SWP (piano wire) |
| Material Seal Nut | Polyacetal resin |
| Operating Force (N) | 34.3 |
| Protective Structure | IP30 |
| Shaft Material | SS400 |
| Withstand Voltage (V/minute) | AC1500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Cannot be used underwater or in oil.Use
Various machine tools, woodworking machines, equipment, testing machines, etc.Ulasan Produk
