Air-operated double diaphragm volumetric pumps, ATEX – IECEx certified, constructed in polypropylene or PVDF in the plastic version or in aluminium or AISI 316 L for the metal versions. BOXER pumps are ideal for pumping liquids with high apparent viscosity, even if containing suspended solids.
The vast range of materials available for the parts in contact with the fluid, such as pump casings and manifolds, diaphragms, balls, ball seats and o-rings, makes them compatible with any type of fluid present on the market.
They can be used in numerous applications such as the following industries: chemical, graphic, paint, galvanic, ceramic, naval, textile, leather, mechanical, oil and many more.

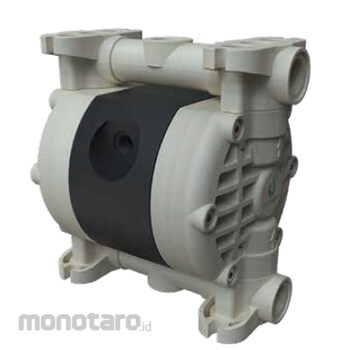

Debem Microboxer-Air Operated Diaphragm Pump
#Grup produk P110905084
Spesifikasi
| Air Fitting | G 1/4” f |
|---|---|
| Air-Side Diaphragm Material | Santoprene |
| Ball Material | PTFE |
| Ball Seat Material | Polypropylene |
| Dimensions (HxWxD) (mm) | 168x165x120 |
| Fluid-Side Diaphragm Material | PTFE |
| Main Application Sector | Production and Storage of Biodiesel, Paint Industry, Chemical Industry, Graphic Industry, Galvanic and Electronic Industry, Gold Processing Industry |
| Max Diameter of Suspended Solid (mm) | 2 |
| Max Negative Suction Head - Dry-Running (m) | 4 (the value depends on the configuration of the pump) |
| Max Negative Suction Head - Pump Primed (m) | 9.5 |
| Max Supply Air Pressure (bar) | 8 |
| Maximum Flow Rate (L/minute) | 35 |
| Maximum Head (m) | 80 |
| Noise Level (dB) | 65 |
| O-Ring Materials | PTFE |
| Pump Casing Material | Polypropylene |
| Pump Model | MICR |
| Suction/Delivery Connection | G 1/2” f |
| Volume per Stroke (cc) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Product designed and constructed in Italy- PATENTED stall-prevention pneumatic circuit
- Operates with non-lubricated air
- Self-priming
- Dry operation
- ATEX certification for ZONE 1 - ZONE 2
- IECEx certification
- Adjustable operating speed
- Extremely versatile
- Suitable for pumping liquids with high viscosity and demanding applications
- Possibility of pumping fluids containing suspended solids
- Possibility of suspended installation
- Manifolds can be supplied with stainless steel reinforcement rings for pumps in PP – PP+CF – PVDF
- Nozzles available with clamp connections and DIN 11851 (only pumps in AISI 316)
- LONG LIFE profile diaphragms (available in different elastomers) for greater resistance and longer life
- Suitable for continuous use
