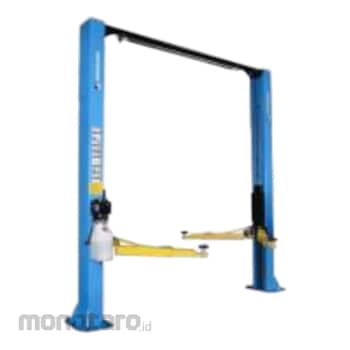

HOFMANN Two Post Lift
#Grup produk P110899969
Spesifikasi
| Arm Extended Length (mm) | 1142 |
|---|---|
| Arm Retracted Length (mm) | 781 |
| Capacity (kg) | 4000 kg |
| Capacity per Arm (kg) | 1000 kg |
| Drive-Thru Width (mm) | 2554 |
| Height to Lowered Lift Pads (mm) | 110 |
| Height to Raised Lift Pad (mm) | 156 |
| Hydraulic Oil Capacity (L) | 10 |
| Hydraulic Oil Specification | ISO 32 / ISO 46 10WT |
| Lifting Time (s) | 40-60 |
| Lower Time (s) | 25-70 |
| Maximum Lifting Height (mm) | 1821 |
| Maximum Operating Pressure (MPa) | 21 |
| Maximum Operating Pressure (psi) | 3000 |
| Overall Height (mm) | 3596 |
| Overall Width (mm) | 3531.5 |
| Power Supply Requirements | 380 VAC, 3 Ph, 50 Hz, 5 Amps; 220 VAC, 1 Ph, 50/60 Hz, 20/16 Amps |
| Width Between Columns (mm) | 2790 |
