KEEPER OIL Oil Gauge
#Grup produk P110870876
Spesifikasi
| Heat Resistance Temperature (°C) | 90 |
|---|---|
| Shape | Round |
| Dimension d1 (Φmm) | Window Diameter: 17 |
| Dimension B1 (mm) | 7 |
| Continuous Use Temperature (°C) | -30 to 90 |
| Dimensions d (mm) | Φ25 (+0.3+0.1) |
| Material (Window) | Resin |
| Maximum Pressure Resistance (kPa) | '343 (3.5kgf/cm²) at 90°C |
| Specification | Standard Type |
| Suitable Housing | D2: Φ21.6, D: Φ25 (H7H8), B2: 7.5 (mm) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

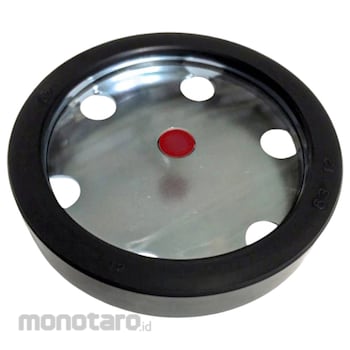

The sophisticated circular one-piece structure allows for secure and easy installation, and allows the oil level to be checked accurately at a glance. The window is made of transparent resin with excellent oil, heat and impact resistance. To make the oil level easier to see, the window surface is made spherical, and a red circle is placed in the center of the window so that the oil level can be seen at a glance. Glass windows are also available for chemical resistance. The reflector has been surface treated to improve the reflection effect and make it easier to check the oil level. In addition, there are six oil passage holes evenly spaced around the circumference, so there is no need to consider the top, bottom, left and right of the oil gauge when inserting it into the housing. The outer rubber is a synthetic rubber with excellent oil and aging resistance, and is baked together with the reinforcing ring using a carefully selected adhesive. Therefore, it has excellent packing properties and there is no need to worry about leakage.
