Set parameters in one shot with a large setting dial!
Use the EASY key to display only frequently used parameters. Parameters can be set without turning on the inverter. Long-life design
Compliant with RoHS (European Restriction of Hazardous Substances) Directive Equipped with safety function, highly reliable output cutoff is possible Achieves energy saving together with motor Easy operation of high torque load Auto tuning makes it easy to set motor constants Teaching function Easy adjustment of the lifting machine
Equipped with RS485 communication function as standard equipment Equipped with a simple programming function <My function-S> that supports a full range of network options
* The rated output current is the value when the PWM carrier frequency (parameter F300) is 4 kHz or less.

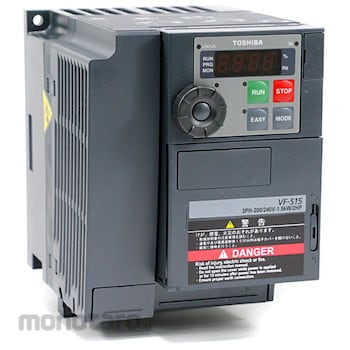

Toshiba Schneider Inverter Multifunction / Small Inverter Tosvert
#Grup produk P110627159
Spesifikasi
| Dimensions d (mm) | 130 |
|---|---|
| Protection Class | IP20 |
| Dimension H (mm) | 130 |
| Mass (kg) | 1.4 |
| Dimension D2 (mm) | 7.5 |
| Allowable Fluctuation of Voltage (V) | 170-264, Frequency ± 5% |
| Applicable Motor Capacity (kW) | 1.5 |
| Capacity (kVA) | 3 |
| Cooling Method | Forced air cooling |
| Dimension H1 (mm) | 121.5 |
| Dimension H2 (mm) | 13 |
| Dimension W (mm) | 105 |
| Electric Capacity (A) | 4.3 |
| Input Voltage (V) | Three-phase 200-240 |
| Operation Environment | No indoors, no direct sunlight, corrosive gas, explosive gas, flammable gas, oil mist, dust, etc./Vibration is 5.9 m / s <sup>2</sup> or less (10 to 55 Hz) |
| Output voltage (V) | Three-phase 200-240 |
| Paint Color | JIS equivalent color 10B2.5 / 1 |
| Rated Output Current (A) | 8 |
| Storage Temperature (°C) | -25-+70 |
| Type of control | Sine wave PWM method |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
The rated output current is the value when the PWM carrier frequency (parameter F3) is 4 kHz or less.Ulasan Produk
