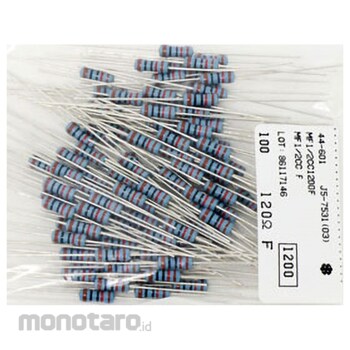

KOA Painted Insulated Metal Film Fixed Resistor MF Series
#Grup produk P110533896
Spesifikasi
| Material | SnCu |
|---|---|
| Packaging | Box |
| Operating Temperature Range (°C) | -55 to 155 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Dimensions l' (mm) | 28 |
| Exterior Color | Light Gray |
| Rated Ambient Temperature (°C) | 70 |
| Resistance Tolerance (%) | ±1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High precision, low TCR metal film resistor. Automatic insertion is possible. Various forming is possible. Excellent long-term stability. It is a European RoHS compliant product. Compatible with AEC-Q200 (data acquisition) (MF1/2 excluded).
Warning
- If ionic impurities such as flux adhere to this product and the mounted printed circuit board, it is not preferable from the point of view of moisture resistance and corrosion resistance. - Flux may contain ionic substances such as chlorine and acid. Wash to remove these ionic substances. Especially when using lead-free solder, it may contain a large amount of ionic substances to improve wettability. Please use RMA solder or flux, or clean thoroughly.
- Depending on the storage environment, mounting conditions, environment, etc., it is not preferable from the point of view of moisture resistance and corrosion resistance even if ionic substances such as sweat and salt adhere. When contaminated, please wash to remove these ionic substances.
