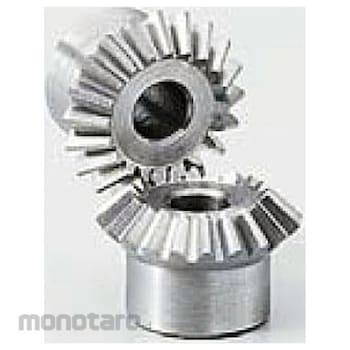

KYOUIKU GEAR MFG Miter gear module 0.8 Helix angle 35° S45C
#Grup produk P110526559
Spesifikasi
| Material | S45C |
|---|---|
| Number of Teeth | 20 |
| Reduction Ratio | 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Module | 0.8 |
| Assembly Distance A (mm) | 16 |
| Dimension La (mm) | 8.57 |
| Hole Diameter dd (mm) | 5 |
| Hole Length l (mm) | 10 |
| Hub Length lh (mm) | 6 |
| Hub Outer Diameter dh (mm) | 12 |
| Reference Circle Diameter D (mm) | 16 |
| Screws | (2-M(120°))2-M3, (ls)3 |
| Tooth Tip Angle 0a | 49°3' |
| Tooth Tip Angle ds (mm) | 9.5 |
| Tooth Tip Circle Diameter da (mm) | 17.13 |
| Tooth width b (mm) | 3.7 |
| Total Length lw (mm) | 11 |
