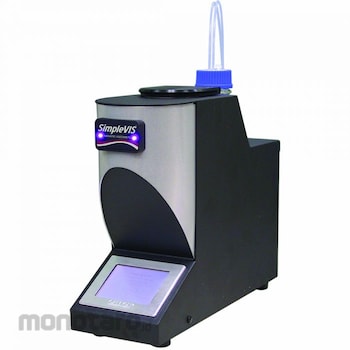

SimpleVIS® is a single sample, portable viscometer for on-site testing. With near D445 precision, it is easy to use, rugged and fast. Available viscometer tubes cover a viscosity range of 2 mm²/s (cSt) to 700 mm²/s (cSt) at two selected temperatures between 40 °C and 100 °C.
COMMON APPLICATIONS
Product chain of custody monitoring
Contamination checks
Point of use testing
Industrial lube blending
Packaging & distribution of petroleum products
Petroleum terminals
Remote used oil predictive maintenance
Power plant applications
Remote mining applications
Cannon Viscometer
#Grup produk P110157526
Spesifikasi
| Method | ASTM D7279 |
|---|---|
| Dimensions (WxDxH) (cm) | 12.8x35.6x30.4 |
| Dimensions (WxDxH) (inch) | 5x14x12 |
| Maximum Throughput (tests per hour) | 20 |
| Sample Capacity | 1 |
| Viscosity Range (mm²/s) | 2 to 700 (cSt), depending on tube selection and temperature |
| Accuracy (°C) | Custom calibration at any two temperatures between 40 and 100 is available on request. |
| Compliance | CE Mark; EMC directive (2004/108/EC); Low voltage directive (2006/95/EC); HI-POT (1900 Vdc, 60 sec.); ROHS |
| Data Output | RS-232 Via DB9 Connector |
| Electrical Requirements Frequency (Hz) | 50/60 |
| Electrical Specifications Adapter (Vac | AC/DC 100 to 230 |
| Electrical Specifications Input Power (Vdc) | 11 to 13 at 5 A Peak |
| Minimum Sample/Solvent (ml/test) | 0.5 |
| Operating Conditions (°C) | 15 to 30, 10% to 75% relative humidity (non-condensing), Installation Category II; Pollution Degree 2 |
| Power Consumption Electrical (W) | 100 |
| Solvent Compatibility | Internal wetted components compatible with n-heptane only; upgrade available for use with acetone |
| Temperature Range (°C) | 40 and 100, ±0.05 |
| Test Accuracy (%) | <3 of measured value, calibrated |
| Test Repeatability (%) | <2 of measured value, typical |
| Volume (ml/test) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
-Automated and precise determination of direct kinematic viscosity at 40 °C and 100 °CProvides true kinematic viscosity measurement without the need to correlate dynamic viscosity data
Viscosity range:
Standard range tube provides viscosities from 10 mm²/s (cSt) to 700 mm²/s (cSt) at 40 °C and 5.5 mm²/s (cSt) to 200 mm²/s (cSt) at 100 °C
Low range tube provides viscosities from 2 mm²/s (cSt) to 140 mm²/s (cSt) at 40 °C and 100 °C
Follows ASTM D7279 and offers near ASTM D445 precision due to exceptional temperature control (±0.05 °C)
Rapid cycle time of 3 to 5 minutes from sample injection to test result
-Portable, self-contained and dependable
Weighs approximately 10 lb and takes up less space than a coffee maker
Does not require a PC or any external utilities
Optional power inverter enables the instrument to run off of a 12 Vdc vehicle charging port
Rugged, reliable design has only two moving parts
-Simple & safe operation
Graphical touch screen display provides step by step test instructions
Factory calibrated; no switches, gauges, or valves to adjust
Solid-state bath eliminates need for liquid bath
Intrinsically safe unit operates on 12 Vdc power
Optional printer available
-Economical
Low cost of ownership
Requires only 10 mL to 15 mL of solvent and 0.5 mL of sample per test
No sample vials required; sample is injected directly into the instrument
*The unit can store two temperatures and is pre-calibrated to 40 °C and 100 °C but custom calibration at any two temperatures between 40 °C and 100 °C is available on request
