A new mechanism with a top flange makes it easy to change from a manual valve to an automatic valve. Since it is equipped with a bottom stand, it can be easily fixed to a frame or panel. By adopting a double O-ring for the stem, durability and sealing performance are improved. Also, since the upper O-ring groove is designed to be deeper than the lower O-ring groove, even if the stem breaks, the upper groove will break first and the internal liquid will not flow out. . Since the handle also serves as a tightening jig, it can be used as a convenient tightening jig by engaging the protrusion on the top of the handle with the concave portion of the union.
General-purpose ball valve, adhesive type.

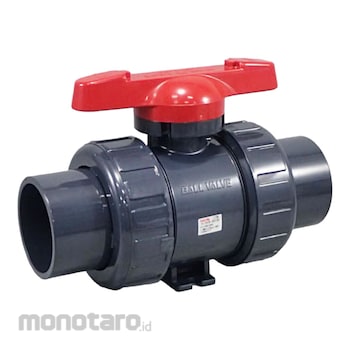

Asahi AV Ball Valve Type 21/ 21 Alpha Type Socket Type
#Grup produk P110052850
Sebelum PPN:
Rp2.299.900 - Rp5.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Shape | Straight |
|---|---|
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Connector | Plug-in |
| Handle Type | T Type |
| Material (Main Unit) | U-PVC |
| Material (Seal) | EPDM |
| Maximum Allowable Pressure (MPa) | 1.0 (10.2kgf/cm²) |
| Operating Temperature Range (°C) | 0-50 |
| Valve Type | Ball Valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
The new mechanism with a top flange makes it easy to change from a manual valve to an automatic valve. The bottom stand makes it easy to fix to a stand or panel. The stem uses a double O-ring to improve durability and sealing. In addition, the upper O-ring groove is designed to be deeper than the lower O-ring groove, so even if the stem breaks, the upper groove will break first, and there will be no leakage of the internal liquid. The handle also serves as a tightening tool, so by engaging the protrusion on the top of the handle with the recess of the union, it becomes a convenient tightening tool.Use
General-purpose ball valve, adhesive type.Ulasan Produk
