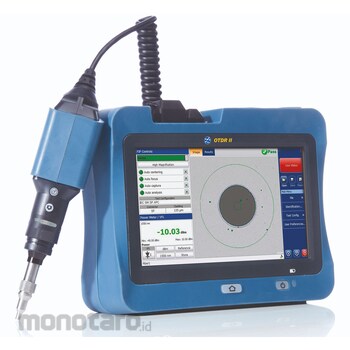

The OTDR II is the first tablet inspired OTDR that is handy, lightweight and rugged enough for any environment.
With a 7-inch outdoor enhanced touchscreen, the most efficient hand held display in the industry, it delivers an unprecedented user experience. Its intuitive user interface including onboard manual ensures a fast learning curve. Plus, its new and improved OTDR platform offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.
Trend Networks Relectometer OTDR
#Grup produk P110051295
Spesifikasi
| Display | 7\" outdoor-enhanced touchscreen, 800x480 TFT |
|---|---|
| Interfaces | Two USB 2.0 ports, RJ-45 LAN 10/100 Mbit/s |
| Wavelength (nm) | 850/1300/1310/1550 |
| Dynamic Range (dB) | 27/29/36/35 |
| Event Dead Zone (m) | Multimode: 0.5 / Single-mode: 0.7 |
| Distance Range (km) | 0.1 to 260 for SM / 0.1 to 40 for MM |
| Attenuation Dead Zone (m) | Multimode: 2.5 / Single-mode: 3 |
| Pulse Width (ns) | Multimode: 3 to 1 000 / Single-mode 3 to 20 000 |
| Size (HxWxD) (mm) | 166x200x68 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- iOLM (Intelligent Optical Link Mapper) - automatic configuration and multiple measurements on the same link provides the best possible measurements regardless of fibre configuration- Onboard PDF reporting
- Macro bend detection
- Short attenuation dead zone: MM: 2.5 m/SM: 3 m and event dead zone: MM: 0.5 m/SM: 0.7 m for accurate location and characterisation of events
- Quad wavelength (850/1300/1310/1550) for both multimode and single-mode testing
- Each fibre may be tested at two wavelengths in a single Autotest
- Provides results in only a few seconds
- Interchangeable fibre adapters with a wide variety of available configurations
- Transfer test results to PC via USB flash drives or USB cable
- Optional video inspection micro scope to check connectors for cleanliness or damage
- Provides simple PASS/FAIL results and macro bend detection in single-mode fibres that helps users identify bends or kinks in the cable, saving time during installation and troubleshooting
- Small size for one handed operation
- Rubber over-mould for enhanced drop protection
- 1 lithium-ion battery provides up to 12 hours operation
- Rugged carrying case for field use
