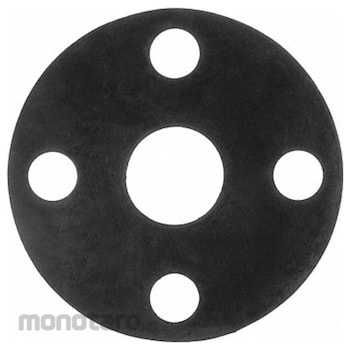

Non Brand Steam-Resistant EPDM Flange Gasket
#Grup produk P110012658
Spesifikasi
Binder Material | None |
---|---|
Color | Black |
For Flange ANSI Class | 150 |
For Fluid Type | Steam; Water |
For Location | Outdoor |
Gasket Material | EPDM |
Hardness | Shore 60A |
Maximum Operating Pressure (psi) | 150 |
Maximum Operating Temperature (°F) | 250 |
Metal Detectable | No |
Minimum Operating Temperature (°F) | -30 |
Standards | ASME B16.21; ASTM D2000 BA 607 |
Thickness (inch) | 1/8 |
X-Ray Detectable | No |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description
These cross-linked polyethylene (XLPE) chemical hose assemblies are used for transferring industrial chemicals in pressure, gravity-flow, and suction applications. These hoses have male NPT (National Pipe Taper) fittings on their ends. The fittings have tapered threads that create a tight seal when connected to compatible equipment. The hoses' tube is made from modified cross-linked polyethylene, which provides excellent high-temperature chemical resistance. The hoses' cover is made from EPDM (ethylene propylene diene monomer), which provides excellent resistance to ozone and abrasion and offers good resistance to heat and chemicals.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Full Face Flange Gasket Gasket Material EPDM Insert Material None For Pipe Size 1 in For Flange ANSI Class 150 Binder Material None Color Black Inside Diameter 1 5/16 in Minimum Operating Temperature -30 Degrees F Maximum Operating Temperature 250 Degrees F Outside Diameter 4 1/4 in Thickness 1/8 in Number of Bolt Holes 4 Bolt Hole Diameter 5/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Shore 60AUlasan Produk
