Non Brand Aluminum Pipe Flange
#Grup produk P109979551
Spesifikasi
| UNSPSC | 40141734 |
|---|---|
| Application | Air; Non-Potable Water; Oil |
| Basic Fitting Shape | Flange |
| Class | Class 125 |
| Color | Silver |
| Connection Surface | Flat Face |
| For Pipe Schedule | 40 |
| Max. Steam Pressure (psi) | 185 |
| Maximum Operating Pressure (psi) | 125 |
| Pipe Fitting Material | Aluminium |
| Standards | ANSI/ASME B16.1 |
| Temperature Range (°F) | 0 to 270 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

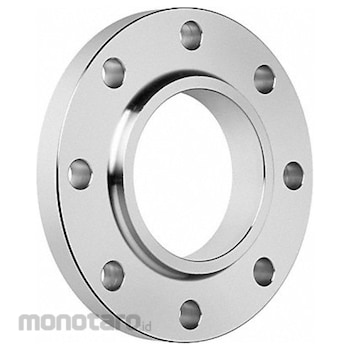

Class 125 slip-on aluminum flanges connect with low-pressure (100-299 psi) pipe. Slip-on flanges, typically with raised or flat faces, slip over pipe. These flanges are manufactured with an inside diameter slightly bigger than the pipe's outside diameter. The pipe slides through the flange and is welded on both sides.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
Slip-On Flange Flat Face 4 in Nominal Pipe Size Flanged x Slip-On 9 in Flange Outside Diameter 7/8 in Flange Thickness 9 in Overall Length Aluminum Class Class 125 For Pipe Schedule 40 125 psi Maximum Operating Pressure 185 psi Max Steam Pressure 0 Degrees to 270 Degrees F Number of Bolt Holes 8 5/8 in Bolt Hole DiameterUlasan Produk
