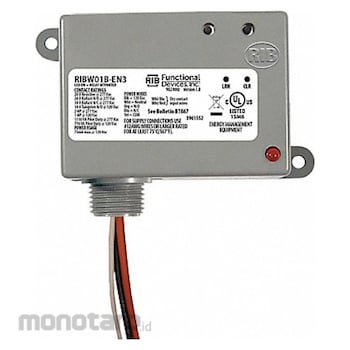

RIB Wireless Relay & Transmitter
#Grup produk P109961525
Spesifikasi
| UNSPSC | 39121515 |
|---|---|
| Body Depth (inch) | 1.8 |
| Body Height (inch) | 2.3 |
| Body Width (inch) | 3.2 |
| Coil Voltage (VAC) | 120 |
| Communication Method | Wireless 902 MHz |
| Contact Form | SPDT |
| Contact Rating (AC) (A) | 10 @120V (NO); 16 @277V (NO); 20 @277V |
| Current Rating (A) | 20 |
| For use with | Enocean 902 MHz Switches/Transmitters |
| Horsepower @ 120V AC (hp) | 1 |
| Horsepower @ 240V AC (hp) | 2 |
| Maximum Operating Temperature (°F) | 140 |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature (°F) | -30 |
| NEMA Enclosure Rating | 1 |
| Nipple Size (inch) | 0.50 NPT |
| Number of Pins | 7 |
| Power Consumption (V/A) | 8.8 |
| Relay Mounting Style | Surface |
| Standards | RoHS Compliant; UL Listed |
| Switch Modes | Alarm; Delay; Momentary; Repeater; Rocker; Toggle |
| Wireless Range (ft) | 50 to 150 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These wireless relays and transmitters communicate using wireless signals to turn circuits on and off.
Feature
Wireless Relay and Transmitter Coil Voltage 120V AC Communication Method Wireless 902 MHz Contact Form SPDT Current Rating 20 A Mounting Style Surface NEMA Enclosure Rating 1 Body Depth 1.8 in Body Height 2.3 in Body Width 3.2 in Contact Material Silver Alloy Contact Rating (AC) 10 A @ 120V (NO) 16 A @ 277V (NO) 20 A @ 277V Features Dry Contact Input Wireless Communication For Use With Enocean 902 MHz Switches/Transmitters Frequency 60 Hz Horsepower @ 120V AC 1 hpUlasan Produk
