IFM Pressure Switch Transducer Combination
#Grup produk P109860730
Spesifikasi
| UNSPSC | 41111927 |
|---|---|
| Analog Output | 4 to 20mA or 0 to 10V DC |
| Control Output | PNP |
| Display | 4 Digit LED |
| Electrical Connection | 4 Pin M12 |
| Housing Material | Stainless Steel |
| IP Rating | 65/67 |
| On/Off Setting | Programmable |
| Operating Temperature Range (°F) | -13 to 176 |
| Power Required (V) | 18 to 30 (DC) |
| Process Connection (inch) | 1/4 NPT |
| Standards | CE; CULus |
| Wetted Materials | Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

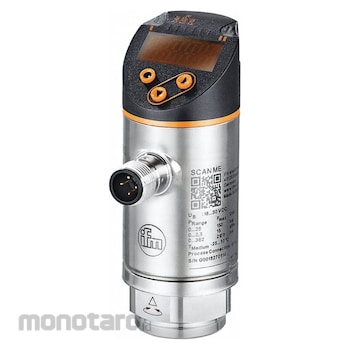

Each of these electronic pressure sensors combines a pressure switch and a pressure transducer. They help to measure relative pressure of Group 2 fluids according to the Pressure Equipment Directive (PED), and group 1 fluids on request. They can provide on/off control of pumps or motors, along with information for process control systems.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Electronic Pressure Sensor Range -14.6 to 145 psi Analog Output 4 to 20mA or 0 to 10V DC Control Output PNP Programmable On/Off Setting Power Required 18 to 30V DC Process Connection 1/4 in NPT Electrical Connection 4 Pin M12 Display 4 Digit LED Wetted Materials Stainless Steel Housing Material Stainless Steel Operating Temp Range -13 Degrees to 176 Degrees F IP Rating 65/67 Max Pressure 2 175 psi Standards CE CULusUlasan Produk
