Schneider Electric IEC Contactor
#Grup produk P109796693
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp16.999.900 - Rp18.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121529 |
|---|---|
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage (VAC) | 120 |
| Contactor Style | IEC |
| Frequency (Hz) | 50/60 |
| Horsepower @ Single Phase - 240V AC (hp) | 3 |
| Horsepower @ Three Phase - 208V AC (hp) | 5 |
| IP Rating | IP20 |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Main Power Pole Contact Form | 3NO |
| Max. Voltage Rating (V) | 690 (AC) |
| Maximum Operating Temperature (°F) | 140 |
| Mechanical Operating Durability | 15000000 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Coil Voltage @ 60Hz (V) | 120 (AC) |
| Number of Poles | 3 |
| Overall Width (inch) | 3.54 |
| Reversing Capability | Reversing |
| Standards | BV; CCC; CSA; CSA C22.2 No 14; DNV; EN 60947-4-1; EN 60947-5-1; GL; GOST; IEC 60335-1; IEC 60947-4-1; IEC 60947-5-1; LROS; RINA; UKCA; UL 508; UL Listed |
| Wire Termination Type | Screw Clamp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

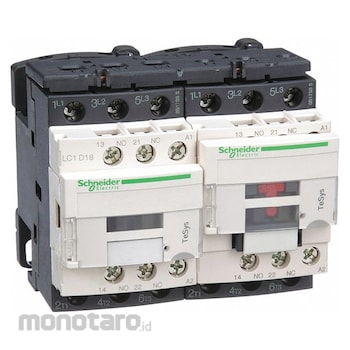

These reversing IEC contactors invert current flow to allow motors to operate in forward and reverse directions. They consist of a forward and a reverse contactor with an interlock system connecting them to prevent one contactor from operating while the other is powered. Reversing motor contactors are suitable for applications requiring motors to switch directions like pumps, conveyors, lifting and pulling mechanisms, and machine tools. Contactors combine with overload relays to create motor load starters and provide overload protection. They can operate without overload relays but won't have protection from overcurrent. Compatible auxiliaries can be added to increase the functionality of contactors.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
IEC Magnetic Contactor Auxiliary Contact Form 1NO/1NC NEMA Enclosure Rating No Enclosure NEMA Size Not Applicable Coil Voltage 120V AC Number of Poles 3 Full Load Current - Inductive 25 A Full Load Current - Resistive 40 A Reversing Capability Reversing Overall Height 3.35 in Overall Width 3.54 in Terminal Connection Type Screw Clamp Terminals Mounting Style DIN Rail Plate Series TeSys Deca Number of Auxillary Contacts 2 Contactor Style IECDokumentasi Produk
