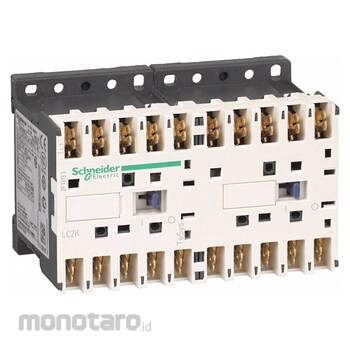

Schneider IEC Contactor
#Grup produk P109796657
Sebelum PPN:
Rp1.499.900 - Rp8.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121529 |
|---|---|
| Contactor Style | IEC |
| Frequency (Hz) | 50/60 |
| IP Rating | IP20 |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Max. Voltage Rating (V) | 690 (AC) |
| Wire Termination Type | Screw Clamp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These reversing IEC contactors invert current flow to allow motors to operate in forward and reverse directions. They consist of a forward and a reverse contactor with an interlock system connecting them to prevent one contactor from operating while the other is powered. Reversing motor contactors are suitable for applications requiring motors to switch directions like pumps, conveyors, lifting and pulling mechanisms, and machine tools. Contactors combine with overload relays to create motor load starters and provide overload protection. They can operate without overload relays but won't have protection from overcurrent. Compatible auxiliaries can be added to increase the functionality of contactors.
Feature
IEC Magnetic Contactor Auxiliary Contact Form 1NO NEMA Enclosure Rating No Enclosure NEMA Size Not Applicable Coil Voltage 24V AC Number of Poles 3 Full Load Current - Inductive 9 A Full Load Current - Resistive 20 A Reversing Capability Reversing Overall Height 2.28 in Overall Width 3.54 in Mounting Style DIN Rail Plate Series TeSys K Number of Auxillary Contacts 1 Contactor Style IEC Maximum Voltage Rating 690V AC Embedded Surge Suppressor No Frequency 50/60 HzUlasan Produk
