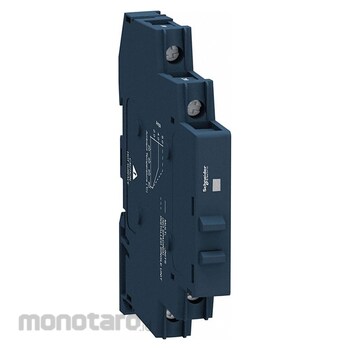

Schneider General Purpose Solid-State Relay
#Grup produk P109775849
Spesifikasi
| UNSPSC | 39121542 |
|---|---|
| Body Depth (inch) | 3.29 |
| Body Height (inch) | 3.55 |
| Body Width (inch) | 0.43 |
| Case Color | Dark Gray |
| Current Type | AC |
| Electrical Connection Type | Screw |
| Electrical Phase | Single |
| Finger Safe | Yes |
| Heat Sink | Integral |
| Horsepower @ 240V AC (hp) | 4/25 |
| IP Rating | IP20 |
| Input Current (mA) | 3 to 5 |
| Input Voltage (V) | 90 to 140 (AC) |
| Insulation Resistance (MΩ) | 1000 |
| Max. Capacitance (pf) | 10 |
| Max. Output Current with Heat Sink (A) | 6 |
| Max. Output Current without Heat Sink (A) | 6 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°F) | -22 |
| Output Switching Mode | Zero Crossing |
| Output Voltage (V AC) | 24 to 280 |
| Power Factor | 0.5 |
| Relay Mounting Style | DIN-Rail |
| Response Time (msec) | 30 |
| Standards | CE Certified; CSA Certified; IEC 60950-1; IEC 61000; IEC 62314; UL Listed |
| Status indicator | Green LED Indicator |
| Switch Component Type | SCR |
| Switch configuration | Form A |
| Voltage/Current Type | AC Output |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These relays secure onto DIN-rails. They help save space and keep wires tidy in electrical enclosures, load centers, and equipment cabinet racks.
Feature
Solid State Relay Electrical Connection Screw Clamp Heat Sink Integral Input Current 3 to 5 mA Input Voltage 90 to 140V AC Maximum Output Current with Heat Sink 6 A Maximum Output Current without Heat Sink 6 A Output Switching Mode Zero Crossing Output Voltage Range 24 to 280V AC Standards CE Certified CSA Certified IEC 60950-1 IEC 61000 IEC 62314 UL Listed Switch Component Type SCR Current Type AC Electrical Phase Single Finger Safe Yes Mounting Style DIN RailUlasan Produk
