Ideal Adhesive-Lined Heat Shrink Tubing
#Grup produk P109680259
Sebelum PPN:
Rp1.699.900 - Rp6.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121711 |
|---|---|
| Adhesive Lined | Yes |
| Color | Black |
| Dielectric Strength (V) | 600 |
| Flame retardant | Yes |
| Material | Cross-Linked Polyolefin with Adhesive |
| Maximum Temperature Rating (°F) | 110 |
| Minimum Shrink Temperature (°F) | 248 |
| Minimum Temperature Rating (°F) | -55 |
| Shrink Ratio | 3:1 |
| Shrink Tubing Properties | Solvent Resistant; UV Light Resistant |
| Standards | ANSI C119.1, C37.20.2; CSA C22.2 No. 198.2; ICEA S-19-8; IEEE 383 Vertical Flame Test; MIL-DTL-23053/15; UL 486D; Western Underground Guides Nos. 2.4, 2.5 |
| Temperature Range (°F) | -55 to 110 |
| Tubing Wall Type | Heavy Wall |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

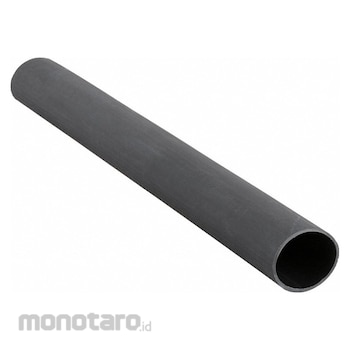

Flame retardant and adhesive-lined heat shrink tubing resists combustion and minimizes the spread of flames. It's used where hot conditions are present, such as in engine compartments. This tubing covers wire and cable and is heated to shrink the tubing and seal the adhesive.
Feature
Heat Shrink Tubing Heavy Wall Material Cross-Linked Polyolefin with Adhesive Semi Rigid Flame Retardant Yes Adhesive Lined Yes Shrink Ratio 3 1 Use With Wire Size 1/0 AWG to 3/0 AWG I.D. Before Shrinking 1.1 in I.D. After Shrinking 0.35 in Wall Thickness After Shrinking 0.12 in Length 6 in Shrink Tubing Properties Solvent Resistant UV Light Resistant Color Black Temp Range -55 Degrees to 110 Degrees F Package Style Individual Pieces Min Shrink Temp 248 Degrees FUlasan Produk
