MERCOID Submersible Level Transmitter
#Grup produk P109673231
Sebelum PPN:
Rp20.999.900 - Rp36.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41111938 |
|---|---|
| Accuracy | ±0.25% of Full Scale |
| Brand | MERCOID |
| Connection Type | NPT |
| Electrical Connections | Cable & Wire Leads |
| Electrical Protection | Yes |
| Housing Material | 316 Stainless Steel |
| Maximum Loop Resistance (ohm) | 900 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Pressure (PSI) | 0 |
| Output (mA DC) | 4 to 20 |
| Process Connection Size (inch) | 1/2 in |
| Response Time (msec) | 50 |
| Seal Material | Fluoroelastomer |
| Standards | CE |
| Thermal Error | ±0.02% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

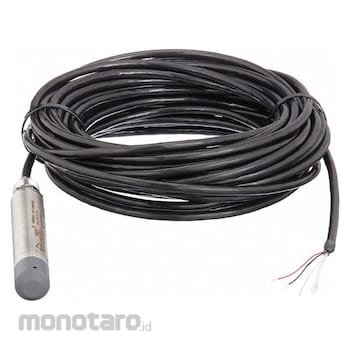

These bullet-nose level transmitters convert pressure readings into an electrical signal which is transmitted to a remote-control room or monitoring panel. They install into a pipe or conduit with a threaded probe or can be suspended in a tank with a hanging loop. These transmitters are commonly used for well, ground, and surface water monitoring, environmental remediation, and for monitoring pressure in water tanks.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
K4735 Submersible Level Transmitter Output 4 to 20mA DC Tip Design Bullet Nose Minimum Pressure 0 psi Maximum Pressure 5 psi Accuracy +/-0.25 Percent of Full Scale Cable Length 40 ft Cable Coating Polyurethane Process Connection Size 1/2 in Process Connection Type NPT Sensor Length 6.7 in Electrical Protection Yes Power Required 10 to 30V DC Series SBLT2 Cable Material Polyurethane Electrical Connections Cable Wire Leads Housing Material 316 Stainless Steel Includes InstructionsUlasan Produk
