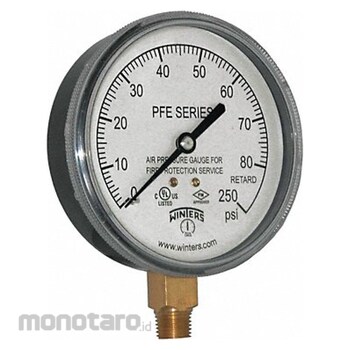

WINTERS Fire Sprinkler System Pressure Gauge
#Grup produk P109667832
Spesifikasi
| UNSPSC | 23151820 |
|---|---|
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid-Scale |
| Ambient Operating Temperature Range (°C) | -40 to 65 |
| Application | Fire Fighting Equipment; Fire Sprinkler Systems |
| Bezel Mounting Type | No Bezel |
| Brand | WINTERS |
| Case Color | Black |
| Case Construction | Plastic |
| Case Depth (inch) | 1.228 |
| Case Diameter (inch) | 3.681 |
| Case Material | Plastic |
| Dial Color | White |
| Dial Face Material | Aluminium |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B - Commercial |
| Gauge Case Material | Plastic |
| Gauge Wetted Parts | Brass / Bronze |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | IP52 |
| Includes | Installation Date Sticker In Unit Box |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Mounting Type | Stem-Mount |
| Movement Material | Brass |
| Nominal Dial Size (inch) | 3-1/2 |
| Operating Temperature Range Ambient (°F) | -40 to 150 |
| Pointer Color | Black |
| Pointer Material | Aluminium |
| Pressure Gauge Type | Fire Sprinkler System Gauge |
| Pressure Range Type | Pressure |
| Pressure Scale | psi |
| Process Connection (inch) | 1/4 NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Range (°F) | -40 to 150 |
| Reads Head Pressure | No |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PFE |
| Socket Material | Brass |
| Standards | ASME B40.100CRN RegisteredFactory MutualUL-393 for USA and Canada |
| Wetted Parts Material | Brass/Phosphor Bronze |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These gauges measure air, water, or both air and water in fire sprinkler system lines. They are UL Certified and FM Approved for use in the US and Canada.
Feature
Pressure Gauge Sprinkler for Air MediaUlasan Produk
