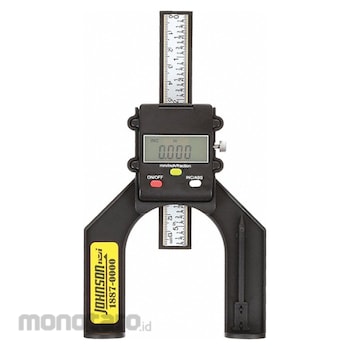

Johnson Digital Depth Gauge
#Grup produk P109666611
Spesifikasi
| UNSPSC | 41111601 |
|---|---|
| Accuracy (inch) | ±0.004 |
| Actuation Style | Slide |
| Base Length (inch) | 4 |
| Base Style | Full |
| Battery Size | CR2032 |
| Blade Material | Steel |
| Blade Tip Shape | Flat |
| Blade Width (inch) | 4-11/32 |
| Brand | JOHNSON |
| Contact Point Shape | Pin |
| Data Output Type | Wireless with Transmitter |
| Depth Gauge Type | Flat Rule |
| Dimension Type | Metric |
| Display Type | LCD |
| Functions | Measures Horizontal and Vertical; Self-Standing |
| IP Rating | IP54 |
| Includes Battery | Yes |
| Long Form Calibration Certificate | No |
| Maximum Measurement (mm) | 50 |
| Minimum Measurement (inch) | 0 |
| Minimum Measurement (mm) | 0 |
| Number of Measuring Rods | 0 |
| Operation Type | Digital |
| Range (inch) | 0 in to 3 in |
| Resolution (inch) | 0.002 |
| Resolution (mm) | 0.05 |
| Rod Diameter (inch) | 0.75 in x 0.25 in |
| SPC Output | No |
| Thimble Type | Straight |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Blade-style digital depth gauges have different tip shapes that allow for a range of hole measurements including depth-of-groove/feature measurements. These gauges consist of a blade/scale that is lowered into a hole and the measurement is shown on the LCD display.
Feature
Digital Depth Gauge Range (in/mm) 0 to 3-1/8 in 0 to 80mm Resolutions (in/mm) 0.0002 Thimble Straight Base Length 4 in Number of Measuring Rods 1 Number of Gauges 1 Rod Type Flat Rule SPC Output No Display LCD Lock Nut Type Thumb Screw Features Measures Horizontal and Vertical Self-Standing Includes BatteryUlasan Produk
